Seco

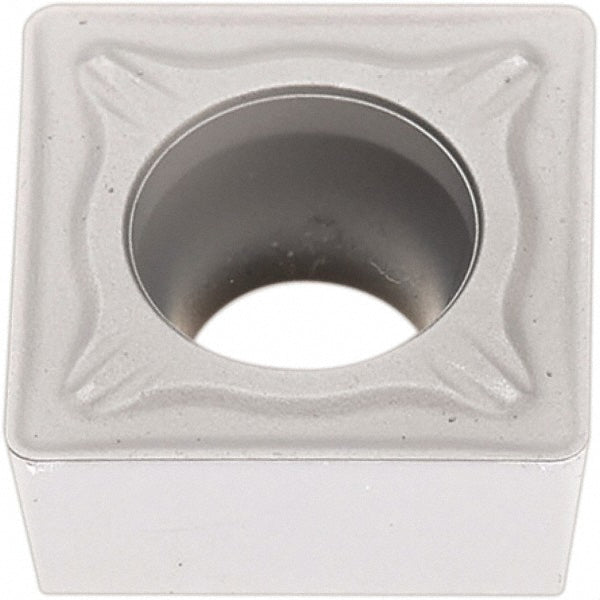

SCMT120408-M5 Carbide Insert, Grade TP2501, TiCN - Seco 02956336
MFR# 02956336ISO/ANSI# SCMT432-M5Series SCMT-M5
$21.12List $27.09
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC1/2
ShapeSquare
GradeTP2501
MaterialCarbide
CoatingTiCN
Description
The Seco 02956336 is a SCMT120408-M5 carbide indexable insert, grade TP2501, TiCN coated. Suited for steel.
Specifications
Chip breakerM5
Clearance codeC
Coating finishTiCN
Coating processCVD
Corner radius in1/32
Cutting edge styleChamfered & Honed
Full radiusNo
Hole diameter0.2205
Included angle90degree
Industry standard numberSCMT432-M5
Inscribed circle in1/2
Insert handNeutral
Insert holding methodScrew
Insert length in1/2
Insert materialCarbide
Insert shapeSquare
Insert size code432
Insert styleSCMT
Insert thickness in3/16
Iso codeSCMT120408-M5
Lead angle90degree
Length range0.5000 - 0.6000
Manufacturers catalog number02956336
Manufacturer gradeTP2501
Material gradeP10; P20; P30; P35
Maximum depth of cut0.4685
Multi use applicationBoring; Facing; Turning
Multi use toolYes
Number of cutting edges4
Primary workpiece materialSteel
RakePositive
Relief angle7
Secondary workpiece materialStainless Steel; Cast Iron
Single or multi tippedMulti Tipped
StandardsANSI; ISO
Tolerance codeM
Width in1/2in
Wiper edgeNo
