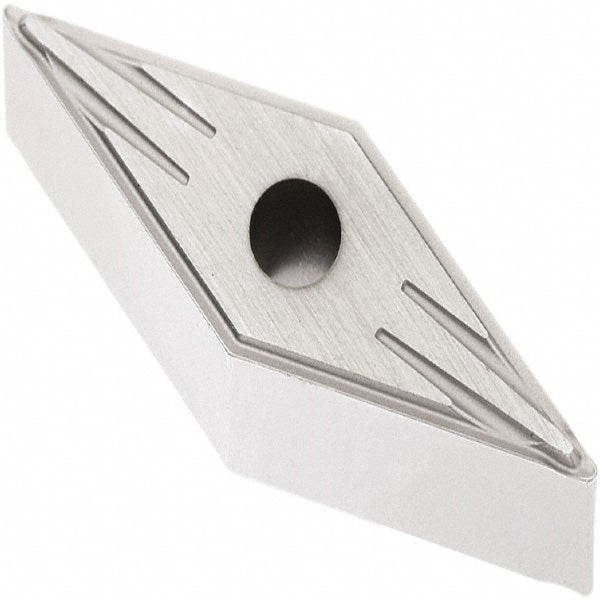

VNMG160408-FF2 Carbide Insert, Grade TP2501, TiCN - Seco 02956351

Seco

VNMG160408-FF2 Carbide Insert, Grade TP2501, TiCN - Seco 02956351

MFR# 02956351ISO/ANSI# VNMG160408Series VNMG-FF2

$34.95List $44.82 Save 22%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
IC3/8
ShapeV - Diamond (Rhombic) 35-Deg
GradeTP2501
MaterialCarbide
CoatingTiCN

Description

The Seco 02956351 is a VNMG160408-FF2 carbide indexable insert, grade TP2501, TiCN coated. Suited for steel.

Specifications

Ansi insert codeVNMG332
Ansi size code332
Chip breakerFF2
Chip breaker operationFinishing
Clearance codeN
Coating finishTiCN
Coating processCVD
Corner radius in1/32
Cutting edge styleHoned
Full radiusNo
Grade characteristicsSteel (P) - High Wear-Resistance to High Toughness; Stainless Steel (M) - High Wear-Resistance to Moderate Wear-Resistance and Toughness; Cast Iron (K) - Moderate Wear-Resistance and Toughness to High Toughness
Hole diameter0.1500
Included angle35
Industry standard numberVNMG332-FF2
Inscribed circle in3/8
Insert handNeutral
Insert holding methodClamp; Pin; Lever Lock
Insert length1.3070
Insert materialCarbide
Insert shapeV - Diamond (Rhombic) 35-Deg
Insert size code332
Insert styleVNMG
Insert thickness in3/16
Iso codeVNMG160408-FF2
Iso insert codeVNMG160408
Iso size code160408
Lead angle35
Length range0.7000 - 10.0000
Manufacturers catalog number02956351
Manufacturer gradeTP2501
Material gradeP10; P20; P30; P35
Maximum depth of cut0.5748
Multi use applicationBack Turning; Facing; Profiling; Turning
Multi use toolYes
Number of cutting edges4
Primary workpiece materialSteel
RakeNegative
Relief angle0
Secondary workpiece materialStainless Steel; Cast Iron
Side clearanceNegative
Single or multi tippedMulti Tipped
StandardsANSI; ISO
Tolerance codeM
Width in3/8
Wiper edgeNo
