Seco

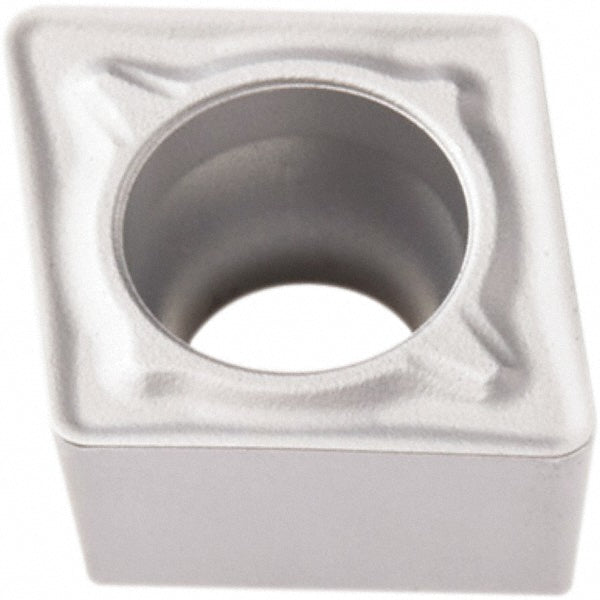

CCMT09T304-M5 Carbide Insert, Grade TP0501, TiCN - Seco 02959764
MFR# 02959764ISO/ANSI# CCMT32.51-M5Series CCMT-M5
$15.15List $19.43
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC3/8
ShapeDiamond 80
GradeTP0501
MaterialCarbide
CoatingTiCN
Description
The Seco 02959764 is a CCMT09T304-M5 carbide indexable insert, grade TP0501, TiCN coated. Suited for steel.
Specifications
Chip breakerM5
Clearance codeC
Coating finishTiCN
Coating processCVD
Corner radius in1/64
Cutting edge styleChamfered & Honed
Full radiusNo
Hole diameter0.1772
Included angle80degree
Industry standard numberCCMT32.51-M5
Inscribed circle in3/8
Insert handNeutral
Insert holding methodScrew
Insert length0.3819
Insert materialCarbide
Insert shapeDiamond 80
Insert size code32.51
Insert styleCCMT
Insert thickness in5/32
Iso codeCCMT09T304-M5
Lead angle80degree
Length range0.3000 - 0.4000
Manufacturers catalog number02959764
Manufacturer gradeTP0501
Material gradeP01; P10
Maximum depth of cut0.3661
Multi use applicationBoring; Facing; Turning
Multi use toolYes
Number of cutting edges2
Primary workpiece materialSteel
RakePositive
Relief angle7
Secondary workpiece materialCast Iron
Single or multi tippedMulti Tipped
StandardsANSI; ISO
Tolerance codeM
Width in3/8in
Wiper edgeNo
