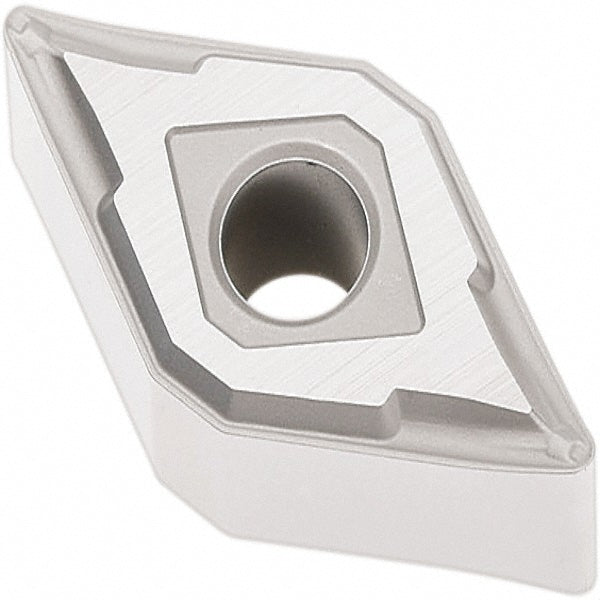

DNMG150408-MF2 Carbide Insert, Grade TP1501, TiCN - Seco 02959805
MFR# 02959805ISO/ANSI# DNMG432-MF2Series DNMG-MF2
$24.08List $30.89
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC1/2
ShapeDiamond 55
GradeTP1501
MaterialCarbide
CoatingTiCN
Description
The Seco 02959805 is a DNMG150408-MF2 carbide indexable insert, grade TP1501, TiCN coated. Suited for steel.
Specifications
Chip breakerMF2
Clearance codeN
Coating finishTiCN
Coating processCVD
Corner radius in1/32
Cutting edge styleChamfered & Honed
Full radiusNo
Hole diameter0.2028
Included angle55degree
Industry standard numberDNMG432-MF2
Inscribed circle in1/2
Insert handNeutral
Insert holding methodClamp; Pin; Lever Lock
Insert length1.2204
Insert materialCarbide
Insert shapeDiamond 55
Insert size code432
Insert styleDNMG
Insert thickness in3/16
Iso codeDNMG150408-MF2
Lead angle55degree
Length range0.7000 - 10.0000
Manufacturers catalog number02959805
Manufacturer gradeTP1501
Material gradeP10; P20
Maximum depth of cut0.5787
Multi use applicationBack Turning; Boring; Facing; Turning
Multi use toolYes
Number of cutting edges4
Primary workpiece materialSteel
RakeNegative
Relief angle0
Secondary workpiece materialCast Iron; Hard Material
Single or multi tippedMulti Tipped
StandardsANSI; ISO
Tolerance codeM
Width in1/2in
Wiper edgeNo
