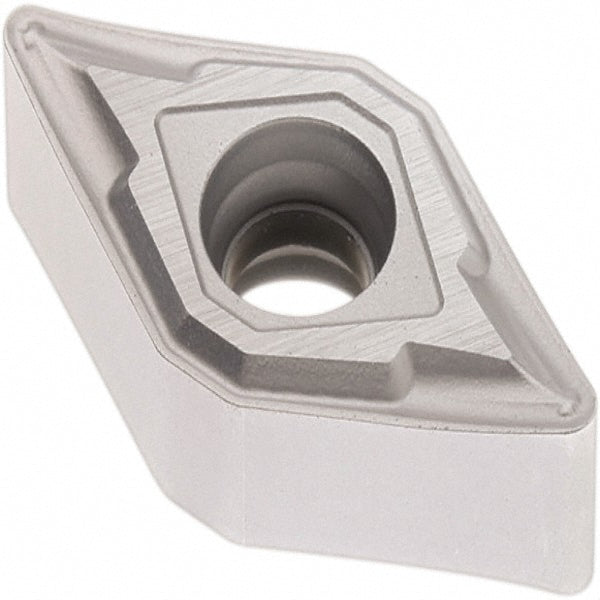

DNMU110408-MF2 Carbide Insert, Grade TP2501, TiCN - Seco 02959829

Seco

DNMU110408-MF2 Carbide Insert, Grade TP2501, TiCN - Seco 02959829

MFR# 02959829ISO/ANSI# DNMU332-MF2Series DNMU-MF2

$19.96List $25.59 Save 22%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
IC3/8
ShapeDiamond 55
GradeTP2501
MaterialCarbide
CoatingTiCN

Description

The Seco 02959829 is a DNMU110408-MF2 carbide indexable insert, grade TP2501, TiCN coated. Suited for steel.

Specifications

Chip breakerMF2
Clearance codeN
Coating finishTiCN
Coating processCVD
Corner radius in1/32
Cutting edge styleChamfered & Honed
Full radiusNo
Hole diameter0.1500
Included angle55degree
Industry standard numberDNMU332-MF2
Inscribed circle in3/8
Insert handNeutral
Insert holding methodClamp; Pin; Lever Lock
Insert length0.9134
Insert materialCarbide
Insert shapeDiamond 55
Insert size code332
Insert styleDNMU
Insert thickness in3/16
Iso codeDNMU110408-MF2
Lead angle55degree
Length range0.7000 - 10.0000
Manufacturers catalog number02959829
Manufacturer gradeTP2501
Material gradeP10; P20; P30; P35
Maximum depth of cut0.4252
Multi use applicationBack Turning; Boring; Facing; Turning
Multi use toolYes
Number of cutting edges4
Primary workpiece materialSteel
RakeNegative
Relief angle0
Secondary workpiece materialStainless Steel; Cast Iron
Single or multi tippedMulti Tipped
StandardsANSI; ISO
Tolerance codeM
Width in3/8in
Wiper edgeNo
