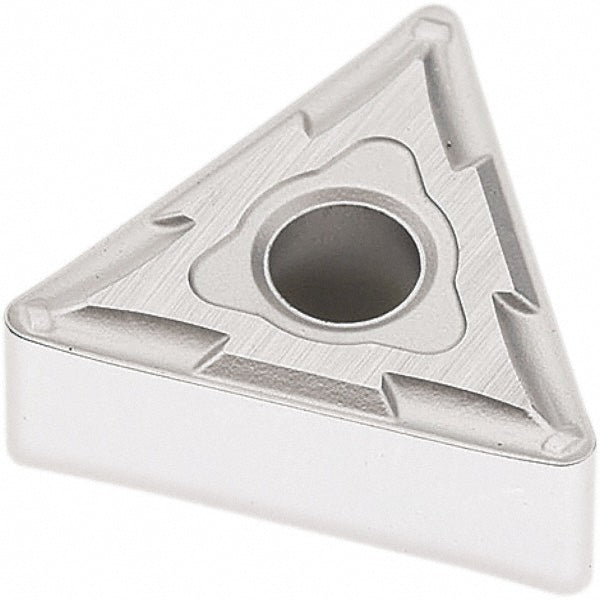

TNMG160404-MF2 Carbide Insert, Grade TP2501, TiCN - Seco 02959833

Seco

TNMG160404-MF2 Carbide Insert, Grade TP2501, TiCN - Seco 02959833

MFR# 02959833ISO/ANSI# TNMG331-MF2Series TNMG-MF2

$16.77List $21.50 Save 22%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
IC3/8
ShapeTriangle
GradeTP2501
MaterialCarbide
CoatingTiCN

Description

The Seco 02959833 is a TNMG160404-MF2 carbide indexable insert, grade TP2501, TiCN coated. Suited for steel.

Specifications

Chip breakerMF2
Clearance codeN
Coating finishTiCN
Coating processCVD
Corner radius in1/64
Cutting edge styleChamfered & Honed
Full radiusNo
Hole diameter0.1500
Included angle60degree
Industry standard numberTNMG331-MF2
Inscribed circle in3/8
Insert handNeutral
Insert holding methodClamp; Pin; Lever Lock
Insert length0.6496
Insert materialCarbide
Insert shapeTriangle
Insert size code331
Insert styleTNMG
Insert thickness in3/16
Iso codeTNMG160404-MF2
Lead angle60degree
Length range0.6000 - 0.6500
Manufacturers catalog number02959833
Manufacturer gradeTP2501
Material gradeP10; P20; P30; P35
Maximum depth of cut0.6102
Multi use applicationBack Turning; Boring; Facing; Turning
Multi use toolYes
Number of cutting edges6
Primary workpiece materialSteel
RakeNegative
Relief angle0
Secondary workpiece materialStainless Steel; Cast Iron
Single or multi tippedMulti Tipped
StandardsANSI; ISO
Tolerance codeM
Width0.6496in
Wiper edgeNo
