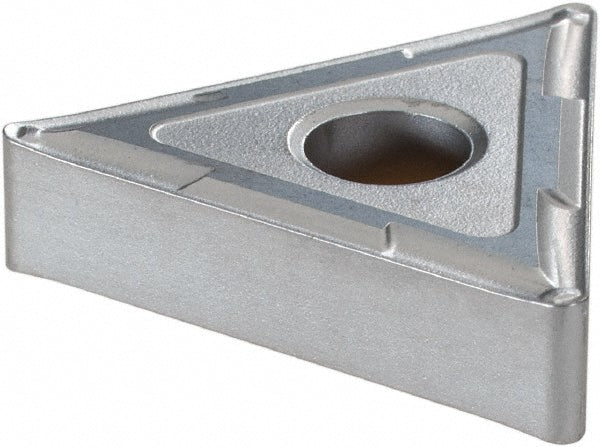

TNMG220408-MF2 Carbide Insert, Grade TP2501, TiCN - Seco 02959837

Seco

TNMG220408-MF2 Carbide Insert, Grade TP2501, TiCN - Seco 02959837

MFR# 02959837ISO/ANSI# TNMG432-MF2Series TNMG-MF2

$23.23List $29.80 Save 22%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
IC1/2
ShapeTriangle
GradeTP2501
MaterialCarbide
CoatingTiCN

Description

The Seco 02959837 is a TNMG220408-MF2 carbide indexable insert, grade TP2501, TiCN coated. Suited for steel.

Specifications

Chip breakerMF2
Clearance codeN
Coating finishTiCN
Coating processCVD
Corner radius in1/32
Cutting edge styleChamfered & Honed
Full radiusNo
Hole diameter0.2028
Included angle60degree
Industry standard numberTNMG432-MF2
Inscribed circle in1/2
Insert handNeutral
Insert holding methodClamp; Pin; Lever Lock
Insert length0.8661
Insert materialCarbide
Insert shapeTriangle
Insert size code432
Insert styleTNMG
Insert thickness in3/16
Iso codeTNMG220408-MF2
Lead angle60degree
Length range0.7000 - 10.0000
Manufacturers catalog number02959837
Manufacturer gradeTP2501
Material gradeP10; P20; P30; P35
Maximum depth of cut0.7874
Multi use applicationBack Turning; Boring; Facing; Turning
Multi use toolYes
Number of cutting edges6
Primary workpiece materialSteel
RakeNegative
Relief angle0
Secondary workpiece materialStainless Steel; Cast Iron
Single or multi tippedMulti Tipped
StandardsANSI; ISO
Tolerance codeM
Width0.8661in
Wiper edgeNo
