Seco

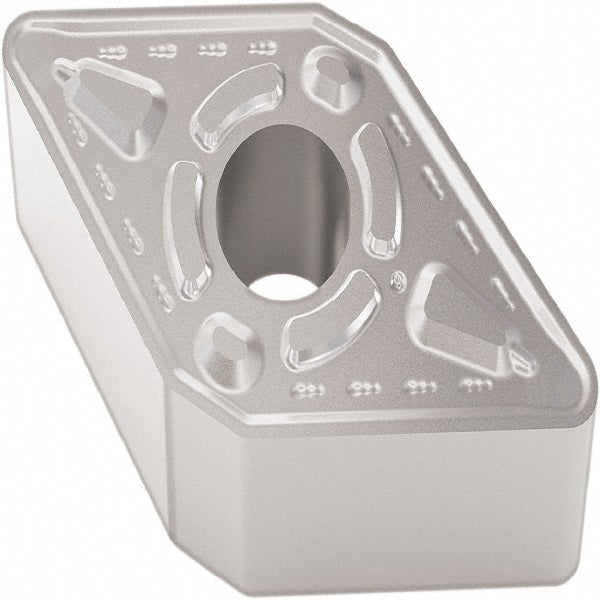

DNMG150408-M6 Carbide Insert, Grade TP2501, TiCN - Seco 02959887
MFR# 02959887ISO/ANSI# DNMG432-M6Series DNMG-M6
$24.08List $30.89
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC1/2
ShapeDiamond 55
GradeTP2501
MaterialCarbide
CoatingTiCN
Description
The Seco 02959887 is a DNMG150408-M6 carbide indexable insert, grade TP2501, TiCN coated. Suited for steel.
Specifications
Chip breakerM6
Clearance codeN
Coating finishTiCN
Coating processCVD
Corner radius in1/32
Cutting edge styleHoned
Full radiusNo
Hole diameter0.2028
Included angle55degree
Industry standard numberDNMG432-M6
Inscribed circle in1/2
Insert handNeutral
Insert holding methodClamp; Pin; Lever Lock
Insert length1.2204
Insert materialCarbide
Insert shapeDiamond 55
Insert size code432
Insert styleDNMG
Insert thickness in3/16
Iso codeDNMG150408-M6
Lead angle55degree
Length range0.7000 - 10.0000
Manufacturers catalog number02959887
Manufacturer gradeTP2501
Material gradeP10; P20; P30; P35
Maximum depth of cut0.5787
Multi use applicationBack Turning; Boring; Facing; Turning
Multi use toolYes
Number of cutting edges4
Primary workpiece materialSteel
RakeNegative
Relief angle0
Secondary workpiece materialStainless Steel; Cast Iron
Single or multi tippedMulti Tipped
StandardsANSI; ISO
Tolerance codeM
Width in1/2in
Wiper edgeNo
