Seco

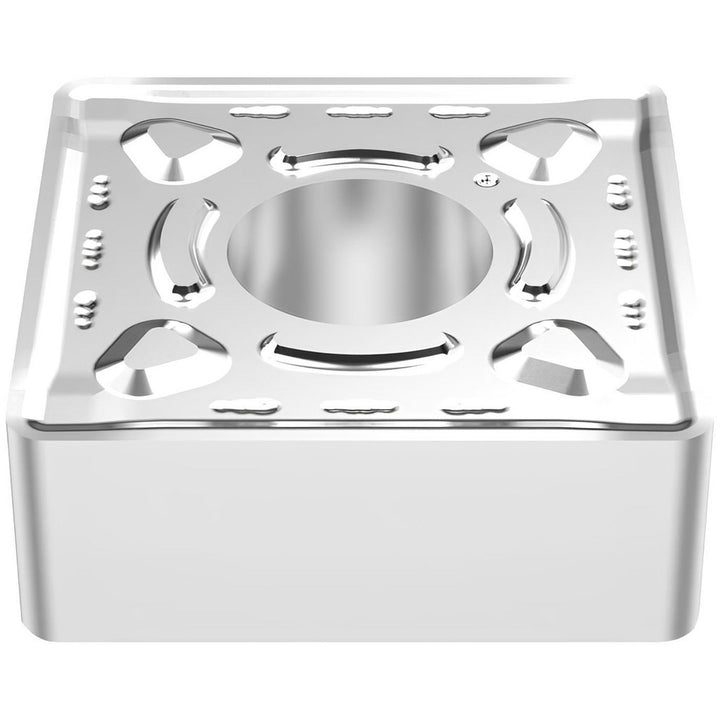

SNMG120412-M6 Carbide Insert, Grade TP1501, TiCN - Seco 02959900
MFR# 02959900ISO/ANSI# SNMG433-M6Series SNMG-M6
$19.12List $24.52
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC1/2
ShapeSquare
GradeTP1501
MaterialCarbide
CoatingTiCN
Description
The Seco 02959900 is a SNMG120412-M6 carbide indexable insert, grade TP1501, TiCN coated. Suited for steel.
Specifications
Chip breakerM6
Clearance codeN
Coating finishTiCN
Coating processCVD
Corner radius in3/64
Cutting edge styleHoned
Full radiusNo
Hole diameter0.2028
Included angle90degree
Industry standard numberSNMG433-M6
Inscribed circle in1/2
Insert handNeutral
Insert holding methodClamp; Pin; Lever Lock
Insert length in1/2
Insert materialCarbide
Insert shapeSquare
Insert size code433
Insert styleSNMG
Insert thickness in3/16
Iso codeSNMG120412-M6
Lead angle90degree
Length range0.5000 - 0.6000
Manufacturers catalog number02959900
Manufacturer gradeTP1501
Material gradeP10; P20
Maximum depth of cut0.4528
Multi use applicationBoring; Facing; Turning
Multi use toolYes
Number of cutting edges8
Primary workpiece materialSteel
RakeNegative
Relief angle0
Secondary workpiece materialCast Iron; Hard Material
Single or multi tippedMulti Tipped
StandardsANSI; ISO
Tolerance codeM
Width in1/2in
Wiper edgeNo
