Seco

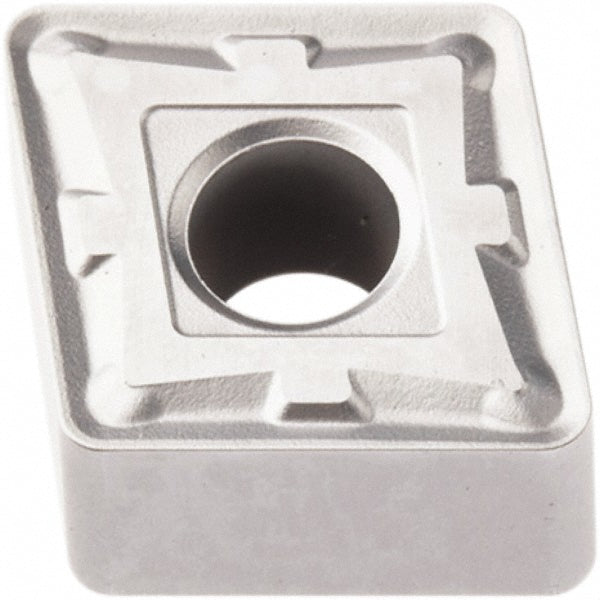

CNMG120412-M3 Carbide Insert, Grade TP0501, TiCN - Seco 02959915
MFR# 02959915ISO/ANSI# CNMG433-M3Series CNMG-M3
$19.12List $24.52
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC1/2
ShapeDiamond 80
GradeTP0501
MaterialCarbide
CoatingTiCN
Description
The Seco 02959915 is a CNMG120412-M3 carbide indexable insert, grade TP0501, TiCN coated. Suited for steel.
Specifications
Chip breakerM3
Clearance codeN
Coating finishTiCN
Coating processCVD
Corner radius in3/64
Cutting edge styleChamfered & Honed
Full radiusNo
Hole diameter0.2028
Included angle80degree
Industry standard numberCNMG433-M3
Inscribed circle in1/2
Insert handNeutral
Insert holding methodClamp; Pin; Lever Lock
Insert length0.5079
Insert materialCarbide
Insert shapeDiamond 80
Insert size code433
Insert styleCNMG
Insert thickness in3/16
Iso codeCNMG120412-M3
Lead angle80degree
Length range0.5000 - 0.6000
Manufacturers catalog number02959915
Manufacturer gradeTP0501
Material gradeP01; P10
Maximum depth of cut0.4606
Multi use applicationBoring; Facing; Turning
Multi use toolYes
Number of cutting edges4
Primary workpiece materialSteel
RakeNegative
Relief angle0
Secondary workpiece materialCast Iron
Single or multi tippedMulti Tipped
StandardsANSI; ISO
Tolerance codeM
Width in1/2in
Wiper edgeNo
