Seco

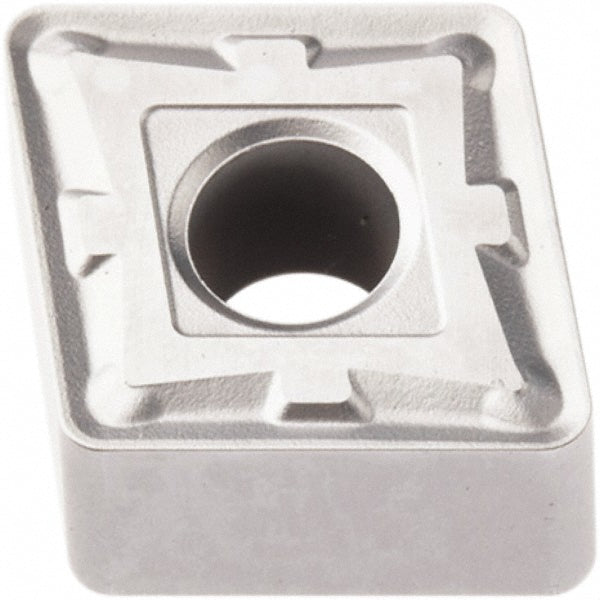

CNMG160612-M3 Carbide Insert, Grade TP1501, TiCN - Seco 02959921
MFR# 02959921ISO/ANSI# CNMG543-M3Series CNMG-M3
$30.15List $38.66
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC5/8
ShapeDiamond 80
GradeTP1501
MaterialCarbide
CoatingTiCN
Description
The Seco 02959921 is a CNMG160612-M3 carbide indexable insert, grade TP1501, TiCN coated. Suited for steel.
Specifications
Chip breakerM3
Clearance codeN
Coating finishTiCN
Coating processCVD
Corner radius in3/64
Cutting edge styleChamfered & Honed
Full radiusNo
Hole diameter0.2500
Included angle80degree
Industry standard numberCNMG543-M3
Inscribed circle in5/8
Insert handNeutral
Insert holding methodClamp; Pin; Lever Lock
Insert length0.6339
Insert materialCarbide
Insert shapeDiamond 80
Insert size code543
Insert styleCNMG
Insert thickness in1/4
Iso codeCNMG160612-M3
Lead angle80degree
Length range0.6000 - 0.6500
Manufacturers catalog number02959921
Manufacturer gradeTP1501
Material gradeP10; P20
Maximum depth of cut0.5866
Multi use applicationBoring; Facing; Turning
Multi use toolYes
Number of cutting edges4
Primary workpiece materialSteel
RakeNegative
Relief angle0
Secondary workpiece materialCast Iron; Hard Material
Single or multi tippedMulti Tipped
StandardsANSI; ISO
Tolerance codeM
Width in5/8in
Wiper edgeNo
