Seco

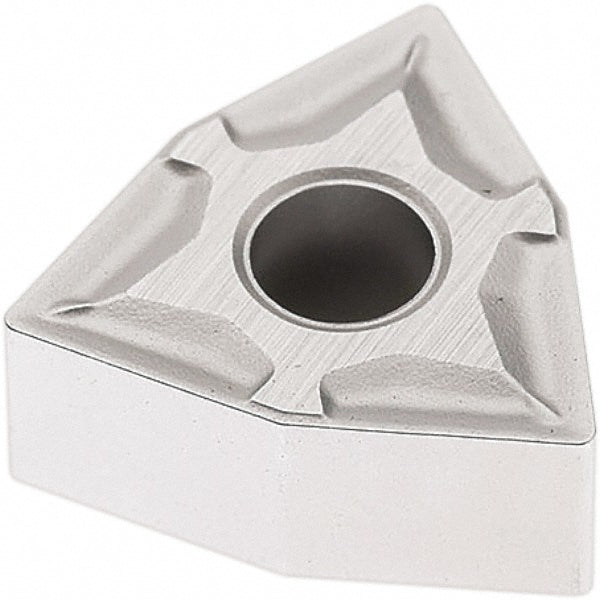

WNMG060404-M3 Carbide Insert, Grade TP2501, TiCN - Seco 02959927
MFR# 02959927ISO/ANSI# WNMG331-M3Series WNMG-M3
$17.27List $22.14
Save 21%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC3/8
ShapeTrigon
GradeTP2501
MaterialCarbide
CoatingTiCN
Description
The Seco 02959927 is a WNMG060404-M3 carbide indexable insert, grade TP2501, TiCN coated. Suited for steel.
Specifications
Chip breakerM3
Clearance codeN
Coating finishTiCN
Coating processCVD
Corner radius in1/64
Cutting edge styleChamfered & Honed
Full radiusNo
Hole diameter0.1500
Included angle80degree
Industry standard numberWNMG331-M3
Inscribed circle in3/8
Insert handNeutral
Insert holding methodClamp; Pin; Lever Lock
Insert length0.5118
Insert materialCarbide
Insert shapeTrigon
Insert size code331
Insert styleWNMG
Insert thickness in3/16
Iso codeWNMG060404-M3
Lead angle80degree
Length range0.5000 - 0.6000
Manufacturers catalog number02959927
Manufacturer gradeTP2501
Material gradeP10; P20; P30; P35
Maximum depth of cut0.2480
Multi use applicationBoring; Facing; Turning
Multi use toolYes
Number of cutting edges6
Primary workpiece materialSteel
RakeNegative
Relief angle0
Secondary workpiece materialStainless Steel; Cast Iron
Single or multi tippedMulti Tipped
StandardsANSI; ISO
Tolerance codeM
Width in3/8in
Wiper edgeNo
