Seco

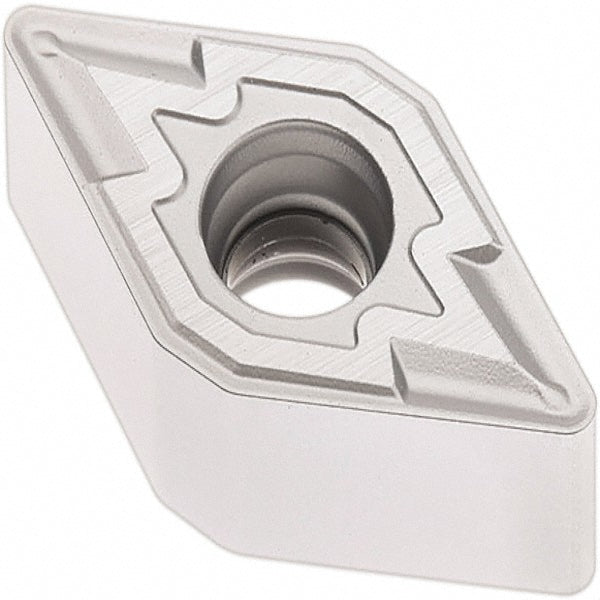

DNMU110402-M3 Carbide Insert, Grade TP2501, TiCN - Seco 02959953
MFR# 02959953ISO/ANSI# DNMU330.5-M3Series DNMU-M3
$18.19List $23.33
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC3/8
ShapeDiamond 55
GradeTP2501
MaterialCarbide
CoatingTiCN
Description
The Seco 02959953 is a DNMU110402-M3 carbide indexable insert, grade TP2501, TiCN coated. Suited for steel.
Specifications
Chip breakerM3
Clearance codeN
Coating finishTiCN
Coating processCVD
Corner radius in1/128
Cutting edge styleChamfered & Honed
Full radiusNo
Hole diameter0.1500
Included angle55degree
Industry standard numberDNMU330.5-M3
Inscribed circle in3/8
Insert handNeutral
Insert holding methodClamp; Pin; Lever Lock
Insert length0.9134
Insert materialCarbide
Insert shapeDiamond 55
Insert size code330.5
Insert styleDNMU
Insert thickness in3/16
Iso codeDNMU110402-M3
Lead angle55degree
Length range0.7000 - 10.0000
Manufacturers catalog number02959953
Manufacturer gradeTP2501
Material gradeP10; P20; P30; P35
Maximum depth of cut0.4488
Multi use applicationBack Turning; Boring; Facing; Turning
Multi use toolYes
Number of cutting edges4
Primary workpiece materialSteel
RakeNegative
Relief angle0
Secondary workpiece materialStainless Steel; Cast Iron
Single or multi tippedMulti Tipped
StandardsANSI; ISO
Tolerance codeM
Width in3/8in
Wiper edgeNo
