Seco

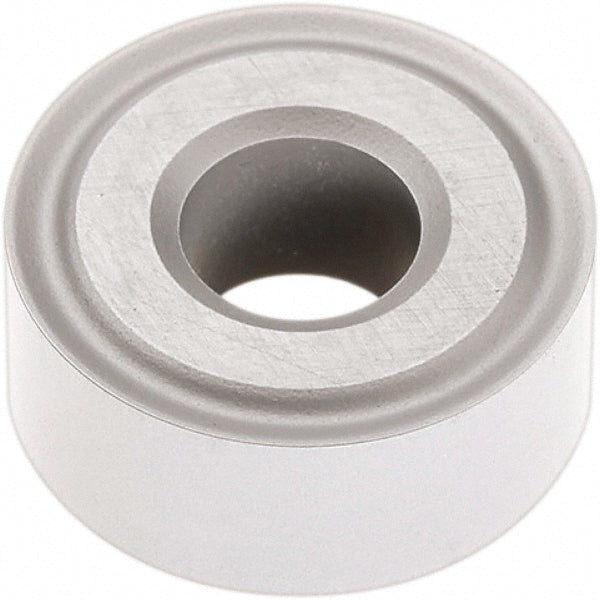

RNMG120400-M3 Carbide Insert, Grade TP1501, TiCN - Seco 02959969
MFR# 02959969ISO/ANSI# RNMG43-M3Series RNMG-M3
$19.62List $25.16
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC1/2
ShapeRound
GradeTP1501
MaterialCarbide
CoatingTiCN
Description
The Seco 02959969 is a RNMG120400-M3 carbide indexable insert, grade TP1501, TiCN coated. Suited for steel.
Specifications
Chip breakerM3
Clearance codeN
Coating finishTiCN
Coating processCVD
Corner radius in1/4
Cutting edge styleChamfered & Honed
Full radiusYes
Hole diameter0.2028
Included angle360degree
Industry standard numberRNMG43-M3
Inscribed circle in1/2
Insert handNeutral
Insert holding methodClamp; Pin; Lever Lock
Insert length in1/2
Insert materialCarbide
Insert shapeRound
Insert size code43
Insert styleRNMG
Insert thickness in3/16
Iso codeRNMG120400-M3
Lead angle360degree
Length range0.5000 - 0.6000
Manufacturers catalog number02959969
Manufacturer gradeTP1501
Material gradeP10; P20
Maximum depth of cut0.2500
Multi use applicationFacing; Profiling; Turning
Multi use toolYes
Number of cutting edges8
Primary workpiece materialSteel
RakeNegative
Relief angle0
Secondary workpiece materialCast Iron; Hard Material
Single or multi tippedMulti Tipped
StandardsANSI; ISO
Tolerance codeM
Width in1/2in
Wiper edgeNo
