Seco

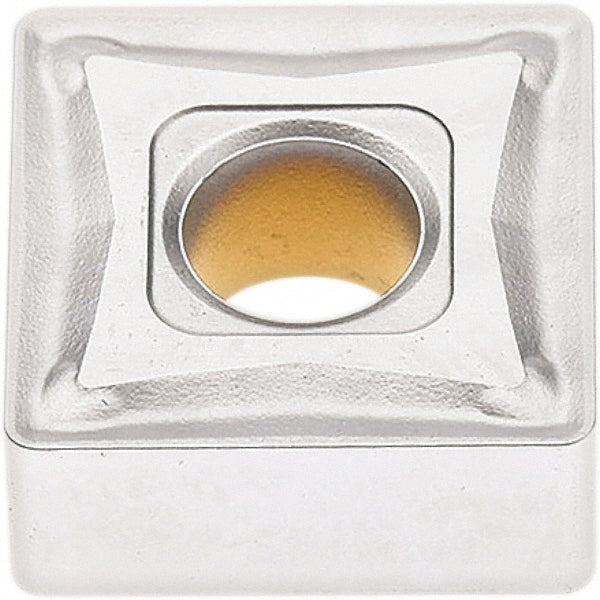

SNMG120404-M3 Carbide Insert, Grade TP2501, TiCN - Seco 02959971
MFR# 02959971ISO/ANSI# SNMG431-M3Series SNMG-M3
$19.12List $24.52
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC1/2
ShapeSquare
GradeTP2501
MaterialCarbide
CoatingTiCN
Description
The Seco 02959971 is a SNMG120404-M3 carbide indexable insert, grade TP2501, TiCN coated. Suited for steel.
Specifications
Chip breakerM3
Clearance codeN
Coating finishTiCN
Coating processCVD
Corner radius in1/64
Cutting edge styleChamfered & Honed
Full radiusNo
Hole diameter0.2028
Included angle90degree
Industry standard numberSNMG431-M3
Inscribed circle in1/2
Insert handNeutral
Insert holding methodClamp; Pin; Lever Lock
Insert length in1/2
Insert materialCarbide
Insert shapeSquare
Insert size code431
Insert styleSNMG
Insert thickness in3/16
Iso codeSNMG120404-M3
Lead angle90degree
Length range0.5000 - 0.6000
Manufacturers catalog number02959971
Manufacturer gradeTP2501
Material gradeP10; P20; P30; P35
Maximum depth of cut0.4843
Multi use applicationBoring; Facing; Turning
Multi use toolYes
Number of cutting edges8
Primary workpiece materialSteel
RakeNegative
Relief angle0
Secondary workpiece materialStainless Steel; Cast Iron
Single or multi tippedMulti Tipped
StandardsANSI; ISO
Tolerance codeM
Width in1/2in
Wiper edgeNo
