Seco

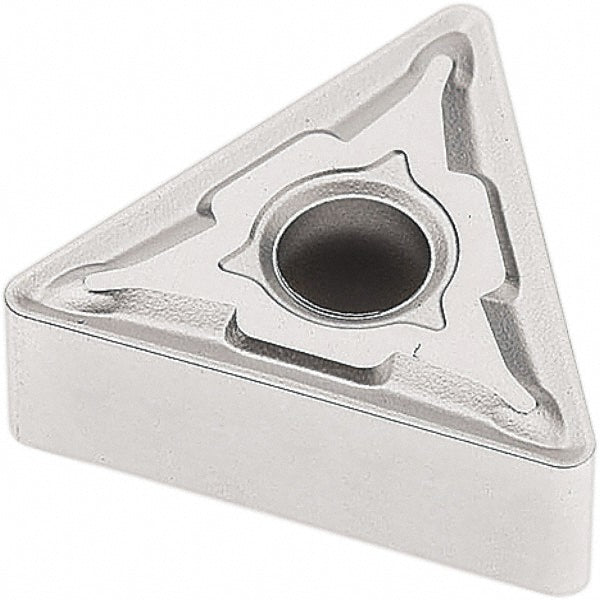

TNMG160408-M3 Carbide Insert, Grade TP2501, TiCN - Seco 02959983
MFR# 02959983ISO/ANSI# TNMG332-M3Series TNMG-M3
$20.39List $25.70
Save 20%
Usually ships in 1-3 business days
Ship times are estimates. We confirm availability on every order and email you right away if anything changes.
⚡ Need it urgently? Confirm stock & ship time →
Sold in multiples of 10 — minimum order 10
Request a quote- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC3/8
ShapeTriangle
GradeTP2501
MaterialCarbide
CoatingTiCN
Description
The Seco 02959983 is a TNMG160408-M3 carbide indexable insert, grade TP2501, TiCN coated. Suited for steel.
Specifications
Chip breakerM3
Clearance codeN
Coating finishTiCN
Coating processCVD
Corner radius in1/32
Cutting edge styleChamfered & Honed
Full radiusNo
Hole diameter0.1500
Included angle60degree
Industry standard numberTNMG332-M3
Inscribed circle in3/8
Insert handNeutral
Insert holding methodClamp; Pin; Lever Lock
Insert length0.6496
Insert materialCarbide
Insert shapeTriangle
Insert size code332
Insert styleTNMG
Insert thickness in3/16
Iso codeTNMG160408-M3
Lead angle60degree
Length range0.6000 - 0.6500
Manufacturers catalog number02959983
Manufacturer gradeTP2501
Material gradeP10; P20; P30; P35
Maximum depth of cut0.5709
Multi use applicationBack Turning; Boring; Facing; Turning
Multi use toolYes
Number of cutting edges6
Primary workpiece materialSteel
RakeNegative
Relief angle0
Secondary workpiece materialStainless Steel; Cast Iron
Single or multi tippedMulti Tipped
StandardsANSI; ISO
Tolerance codeM
Width0.6496in
Wiper edgeNo
