Seco

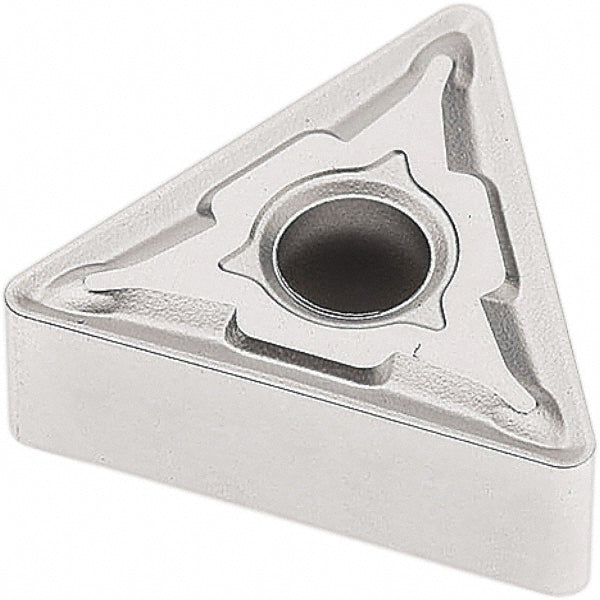

TNMG220412-M3 Carbide Insert, Grade TP1501, TiCN - Seco 02959986
MFR# 02959986ISO/ANSI# TNMG433-M3Series TNMG-M3
$23.23List $29.80
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC1/2
ShapeTriangle
GradeTP1501
MaterialCarbide
CoatingTiCN
Description
The Seco 02959986 is a TNMG220412-M3 carbide indexable insert, grade TP1501, TiCN coated. Suited for steel.
Specifications
Chip breakerM3
Clearance codeN
Coating finishTiCN
Coating processCVD
Corner radius in3/64
Cutting edge styleChamfered & Honed
Full radiusNo
Hole diameter0.2028
Included angle60
Industry standard numberTNMG433-M3
Inscribed circle in1/2
Insert handNeutral
Insert holding methodClamp; Pin; Lever Lock
Insert length0.8661
Insert materialCarbide
Insert shapeTriangle
Insert size code433
Insert styleTNMG
Insert thickness in3/16
Iso codeTNMG220412-M3
Lead angle60
Length range0.7000 - 10.0000
Manufacturers catalog number02959986
Manufacturer gradeTP1501
Material gradeP10; P20
Maximum depth of cut0.7520
Multi use applicationBack Turning; Boring; Facing; Turning
Multi use toolYes
Number of cutting edges6
Primary workpiece materialSteel
RakeNegative
Relief angle0
Secondary workpiece materialCast Iron; Hard Material
Single or multi tippedMulti Tipped
StandardsANSI; ISO
Tolerance codeM
Width0.8661
Wiper edgeNo
