Seco

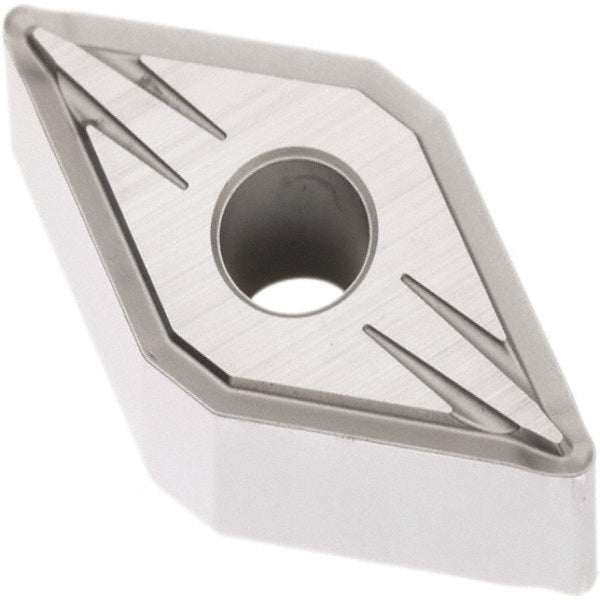

DNMG150404-FF2 Carbide Insert, Grade TP1501, TiCN - Seco 02960018
MFR# 02960018ISO/ANSI# DNMG431-FF2Series DNMG-FF2
$24.08List $30.89
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC1/2
ShapeDiamond 55
GradeTP1501
MaterialCarbide
CoatingTiCN
Description
The Seco 02960018 is a DNMG150404-FF2 carbide indexable insert, grade TP1501, TiCN coated. Suited for steel.
Specifications
Chip breakerFF2
Clearance codeN
Coating finishTiCN
Coating processCVD
Corner radius in1/64
Cutting edge styleHoned
Full radiusNo
Hole diameter0.2028
Included angle55degree
Industry standard numberDNMG431-FF2
Inscribed circle in1/2
Insert handNeutral
Insert holding methodClamp; Pin; Lever Lock
Insert length1.2204
Insert materialCarbide
Insert shapeDiamond 55
Insert size code431
Insert styleDNMG
Insert thickness in3/16
Iso codeDNMG150404-FF2
Lead angle55degree
Length range0.7000 - 10.0000
Manufacturers catalog number02960018
Manufacturer gradeTP1501
Material gradeP10; P20
Maximum depth of cut0.5945
Multi use applicationBack Turning; Boring; Facing; Turning
Multi use toolYes
Number of cutting edges4
Primary workpiece materialSteel
RakeNegative
Relief angle0
Secondary workpiece materialCast Iron; Hard Material
Single or multi tippedMulti Tipped
StandardsANSI; ISO
Tolerance codeM
Width in1/2in
Wiper edgeNo
