Seco

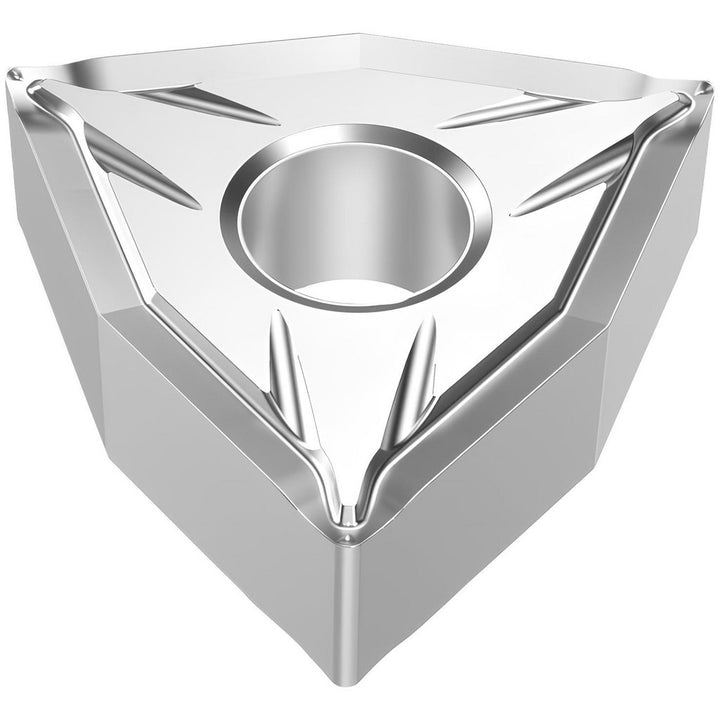

WNMG060408-FF2 Carbide Insert, Grade TP1501, TiCN - Seco 02960035
MFR# 02960035ISO/ANSI# WNMG332-FF2Series WNMG-FF2
$17.27List $22.14
Save 21%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC3/8
ShapeTrigon
GradeTP1501
MaterialCarbide
CoatingTiCN
Description
The Seco 02960035 is a WNMG060408-FF2 carbide indexable insert, grade TP1501, TiCN coated. Suited for steel.
Specifications
Chip breakerFF2
Clearance codeN
Coating finishTiCN
Coating processCVD
Corner radius in1/32
Cutting edge styleHoned
Full radiusNo
Hole diameter0.1500
Included angle80degree
Industry standard numberWNMG332-FF2
Inscribed circle in3/8
Insert handNeutral
Insert holding methodClamp; Pin; Lever Lock
Insert length0.5118
Insert materialCarbide
Insert shapeTrigon
Insert size code332
Insert styleWNMG
Insert thickness in3/16
Iso codeWNMG060408-FF2
Lead angle80degree
Length range0.5000 - 0.6000
Manufacturers catalog number02960035
Manufacturer gradeTP1501
Material gradeP10; P20
Maximum depth of cut0.2441
Multi use applicationBoring; Facing; Turning
Multi use toolYes
Number of cutting edges6
Primary workpiece materialSteel
RakeNegative
Relief angle0
Secondary workpiece materialCast Iron; Hard Material
Single or multi tippedMulti Tipped
StandardsANSI; ISO
Tolerance codeM
Width in3/8in
Wiper edgeNo
