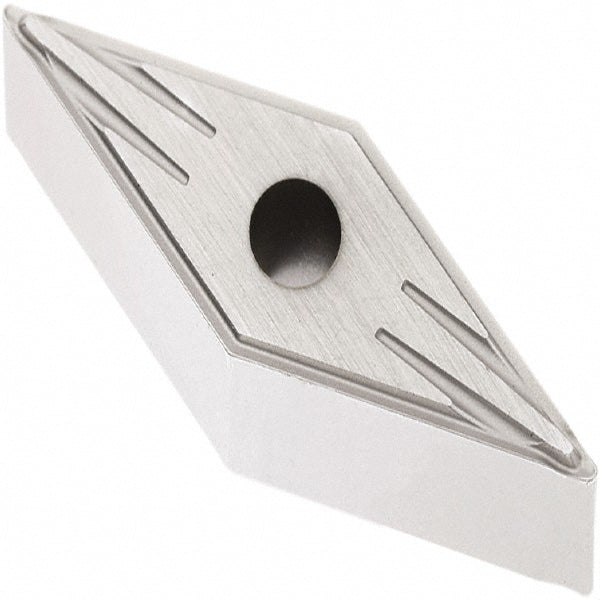

VNMG160402-FF2 Carbide Insert, Grade TP1501, TiCN - Seco 02960040

Seco

VNMG160402-FF2 Carbide Insert, Grade TP1501, TiCN - Seco 02960040

MFR# 02960040ISO/ANSI# VNMG160402Series VNMG-FF2

$34.95List $44.82 Save 22%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
IC3/8
ShapeV - Diamond (Rhombic) 35-Deg
GradeTP1501
MaterialCarbide
CoatingTiCN

Description

The Seco 02960040 is a VNMG160402-FF2 carbide indexable insert, grade TP1501, TiCN coated. Suited for steel.

Specifications

Ansi insert codeVNMG330.5
Ansi size code330.5
Chip breakerFF2
Chip breaker operationFinishing
Clearance codeN
Coating finishTiCN
Coating processCVD
Corner radius in1/128
Cutting edge styleHoned
Full radiusNo
Grade characteristicsSteel (P) - High Wear-Resistance to Moderate Wear-Resistance and Toughness; Cast Iron (K) - High Wear-Resistance to Moderate Wear-Resistance and Toughness
Hole diameter0.1500
Included angle35
Industry standard numberVNMG330.5-FF2
Inscribed circle in3/8
Insert handNeutral
Insert holding methodClamp; Pin; Lever Lock
Insert length1.3070
Insert materialCarbide
Insert shapeV - Diamond (Rhombic) 35-Deg
Insert size code330.5
Insert styleVNMG
Insert thickness in3/16
Iso codeVNMG160402-FF2
Iso insert codeVNMG160402
Iso size code160402
Lead angle35
Length range0.7000 - 10.0000
Manufacturers catalog number02960040
Manufacturer gradeTP1501
Material gradeP10; P20
Maximum depth of cut0.6220
Multi use applicationBack Turning; Facing; Profiling; Turning
Multi use toolYes
Number of cutting edges4
Primary workpiece materialSteel
RakeNegative
Relief angle0
Secondary workpiece materialCast Iron; Hard Material
Side clearanceNegative
Single or multi tippedMulti Tipped
StandardsANSI; ISO
Tolerance codeM
Width in3/8
Wiper edgeNo
