Seco

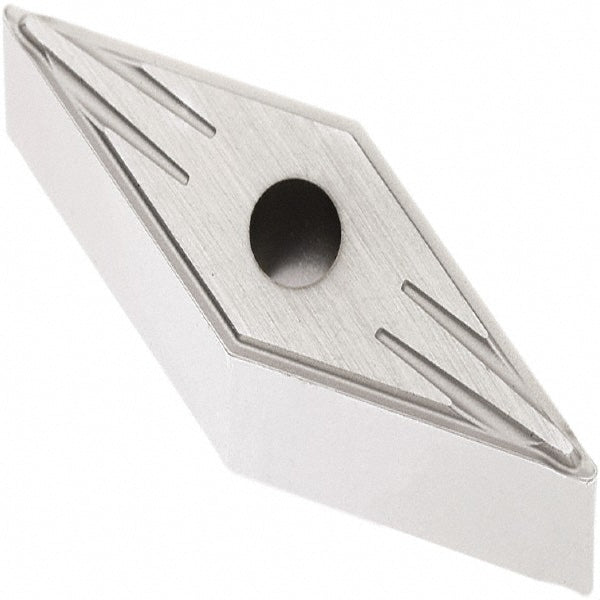

VNMG160408-FF2 Carbide Insert, Grade TP1501, TiCN - Seco 02960042
MFR# 02960042ISO/ANSI# VNMG332-FF2Series VNMG-FF2
$34.95List $44.82
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC3/8
ShapeDiamond 35
GradeTP1501
MaterialCarbide
CoatingTiCN
Description
The Seco 02960042 is a VNMG160408-FF2 carbide indexable insert, grade TP1501, TiCN coated. Suited for steel.
Specifications
Chip breakerFF2
Clearance codeN
Coating finishTiCN
Coating processCVD
Corner radius in1/32
Cutting edge styleHoned
Full radiusNo
Hole diameter0.1500
Included angle35degree
Industry standard numberVNMG332-FF2
Inscribed circle in3/8
Insert handNeutral
Insert holding methodClamp; Pin; Lever Lock
Insert length1.3070
Insert materialCarbide
Insert shapeDiamond 35
Insert size code332
Insert styleVNMG
Insert thickness in3/16
Iso codeVNMG160408-FF2
Lead angle35degree
Length range0.7000 - 10.0000
Manufacturers catalog number02960042
Manufacturer gradeTP1501
Material gradeP10; P20
Maximum depth of cut0.5748
Multi use applicationBack Turning; Facing; Profiling; Turning
Multi use toolYes
Number of cutting edges4
Primary workpiece materialSteel
RakeNegative
Relief angle0
Secondary workpiece materialCast Iron; Hard Material
Single or multi tippedMulti Tipped
StandardsANSI; ISO
Tolerance codeM
Width in3/8in
Wiper edgeNo
