Seco

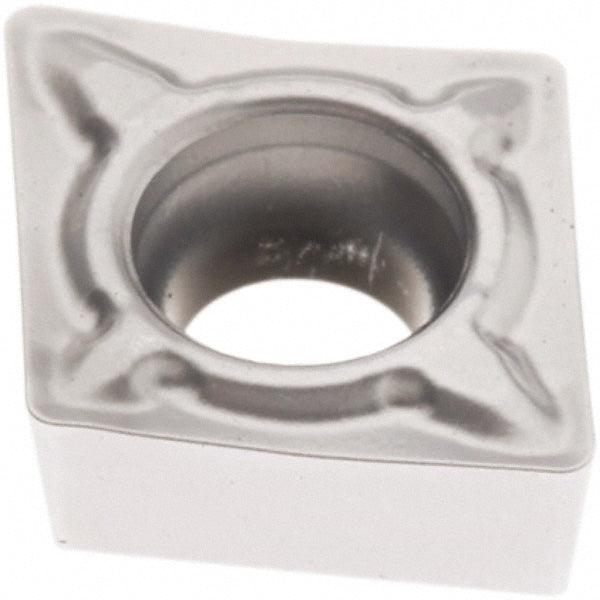

CCMT060202-F1 Carbide Insert, Grade TP2501, TiCN - Seco 02960384
MFR# 02960384ISO/ANSI# CCMT21.50.5-F1Series CCMT-F1
$14.90List $19.11
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC1/4
ShapeDiamond 80
GradeTP2501
MaterialCarbide
CoatingTiCN
Description
The Seco 02960384 is a CCMT060202-F1 carbide indexable insert, grade TP2501, TiCN coated. Suited for steel.
Specifications
Chip breakerF1
Clearance codeC
Coating finishTiCN
Coating processCVD
Corner radius in1/128
Cutting edge styleSharp
Full radiusNo
Hole diameter0.1142
Included angle80degree
Industry standard numberCCMT21.50.5-F1
Inscribed circle in1/4
Insert handNeutral
Insert holding methodScrew
Insert length0.2559
Insert materialCarbide
Insert shapeDiamond 80
Insert size code21.50.5
Insert styleCCMT
Insert thickness in3/32
Iso codeCCMT060202-F1
Lead angle80degree
Length range0.0000 - 0.3000
Manufacturers catalog number02960384
Manufacturer gradeTP2501
Material gradeP10; P20; P30; P35
Maximum depth of cut0.2441
Multi use applicationBoring; Facing; Turning
Multi use toolYes
Number of cutting edges2
Primary workpiece materialSteel
RakePositive
Relief angle7
Secondary workpiece materialStainless Steel; Cast Iron
Single or multi tippedMulti Tipped
StandardsANSI; ISO
Tolerance codeM
Width in1/4in
Wiper edgeNo
