Seco

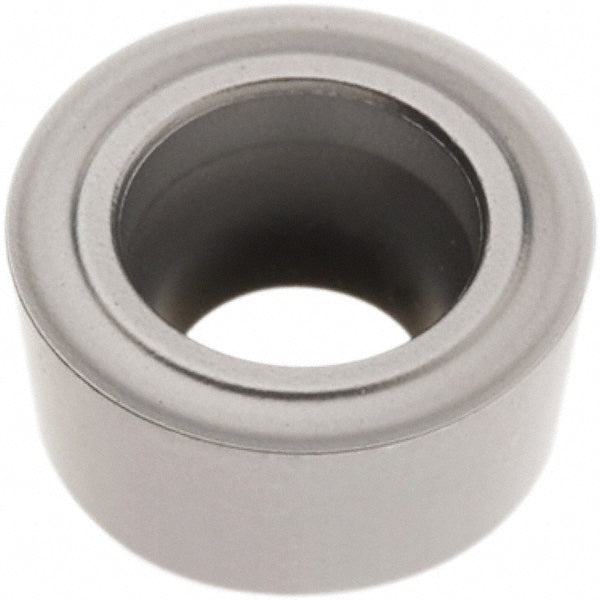

RCMT0602M0-F1 Carbide Insert, Grade TP2501, TiCN - Seco 02960387
MFR# 02960387ISO/ANSI# RCMT0602M0-F1Series RCMT-F1
$10.53List $13.50
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
ShapeRound
GradeTP2501
MaterialCarbide
CoatingTiCN
Description
The Seco 02960387 is a RCMT0602M0-F1 carbide indexable insert, grade TP2501, TiCN coated. Suited for steel.
Specifications
Chip breakerF1
Clearance codeC
Coating finishTiCN
Coating processCVD
Corner radius0.1181
Cutting edge styleSharp
Full radiusYes
Hole diameter0.1142
Included angle360degree
Industry standard numberRCMT0602M0-F1
Inscribed circle0.2362
Insert handNeutral
Insert holding methodScrew
Insert length0.2362
Insert materialCarbide
Insert shapeRound
Insert size code0602M0
Insert styleRCMT
Insert thickness in3/32
Iso codeRCMT0602M0-F1
Lead angle360degree
Length range0.0000 - 0.3000
Manufacturers catalog number02960387
Manufacturer gradeTP2501
Material gradeP10; P20; P30; P35
Maximum depth of cut0.1181
Multi use applicationFacing; Profiling; Turning
Multi use toolYes
Number of cutting edges4
Primary workpiece materialSteel
RakePositive
Relief angle7
Secondary workpiece materialStainless Steel; Cast Iron
Single or multi tippedMulti Tipped
StandardsANSI; ISO
Tolerance codeM
Width0.2362in
Wiper edgeNo
