Seco

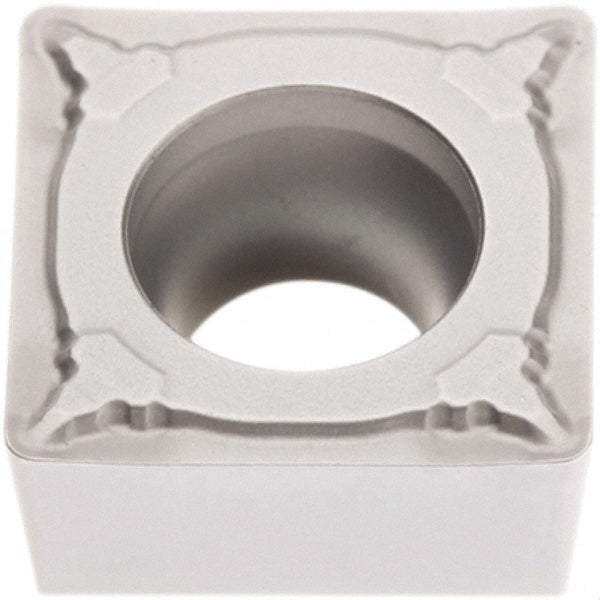

SCMT09T304-F1 Carbide Insert, Grade TP2501, TiCN - Seco 02960395
MFR# 02960395ISO/ANSI# SCMT32.51-F1Series SCMT-F1
$15.15List $19.43
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC3/8
ShapeSquare
GradeTP2501
MaterialCarbide
CoatingTiCN
Description
The Seco 02960395 is a SCMT09T304-F1 carbide indexable insert, grade TP2501, TiCN coated. Suited for steel.
Specifications
Chip breakerF1
Clearance codeC
Coating finishTiCN
Coating processCVD
Corner radius in1/64
Cutting edge styleSharp
Full radiusNo
Hole diameter0.1772
Included angle90degree
Industry standard numberSCMT32.51-F1
Inscribed circle in3/8
Insert handNeutral
Insert holding methodScrew
Insert length in3/8
Insert materialCarbide
Insert shapeSquare
Insert size code32.51
Insert styleSCMT
Insert thickness in5/32
Iso codeSCMT09T304-F1
Lead angle90degree
Length range0.3000 - 0.4000
Manufacturers catalog number02960395
Manufacturer gradeTP2501
Material gradeP10; P20; P30; P35
Maximum depth of cut0.3583
Multi use applicationBoring; Facing; Turning
Multi use toolYes
Number of cutting edges4
Primary workpiece materialSteel
RakePositive
Relief angle7
Secondary workpiece materialStainless Steel; Cast Iron
Single or multi tippedMulti Tipped
StandardsANSI; ISO
Tolerance codeM
Width in3/8in
Wiper edgeNo
