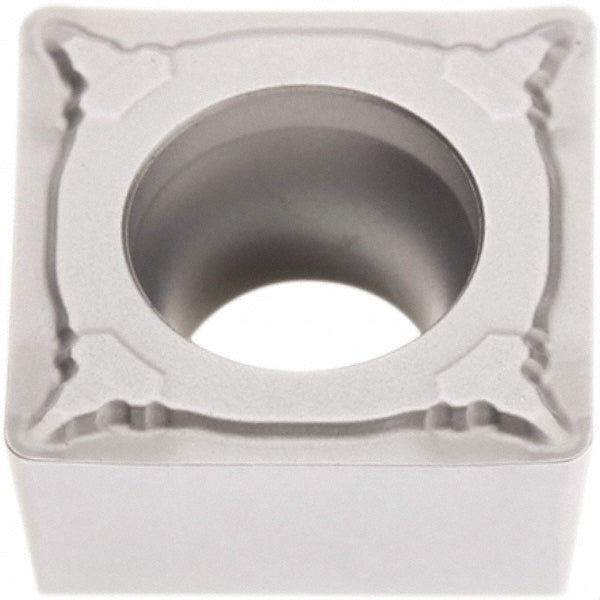

SCMT09T308-F1 Carbide Insert, Grade TP2501, TiCN - Seco 02960396

Seco

SCMT09T308-F1 Carbide Insert, Grade TP2501, TiCN - Seco 02960396

MFR# 02960396ISO/ANSI# SCMT09T308Series SCMT-F1

$15.15List $19.43 Save 22%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
IC3/8
ShapeS - Square
GradeTP2501
MaterialCarbide
CoatingTiCN

Description

The Seco 02960396 is a SCMT09T308-F1 carbide indexable insert, grade TP2501, TiCN coated. Suited for steel.

Specifications

Ansi insert codeSCMT32.52
Ansi size code32.52
Chip breakerF1
Chip breaker operationFinishing
Clearance codeC
Coating finishTiCN
Coating processCVD
Corner radius in1/32
Cutting edge styleSharp
Full radiusNo
Grade characteristicsSteel (P) - High Wear-Resistance to High Toughness; Stainless Steel (M) - High Wear-Resistance to Moderate Wear-Resistance and Toughness; Cast Iron (K) - Moderate Wear-Resistance and Toughness to High Toughness
Hole diameter0.1772
Included angle90
Industry standard numberSCMT32.52-F1
Inscribed circle in3/8
Insert handNeutral
Insert holding methodScrew
Insert length in3/8
Insert materialCarbide
Insert shapeS - Square
Insert size code32.52
Insert styleSCMT
Insert thickness in5/32
Iso codeSCMT09T308-F1
Iso insert codeSCMT09T308
Iso size code09T308
Lead angle90
Length range0.3000 - 0.4000
Manufacturers catalog number02960396
Manufacturer gradeTP2501
Material gradeP10; P20; P30; P35
Maximum depth of cut0.3425
Multi use applicationBoring; Facing; Turning
Multi use toolYes
Number of cutting edges4
Primary workpiece materialSteel
RakePositive
Relief angle7
Secondary workpiece materialStainless Steel; Cast Iron
Side clearancePositive
Single or multi tippedMulti Tipped
StandardsANSI; ISO
Tolerance codeM
Width in3/8
Wiper edgeNo
