Seco

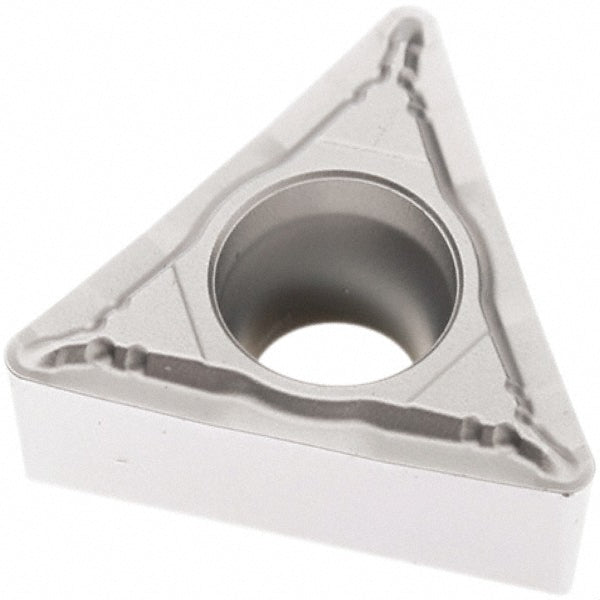

TCMT110208-F1 Carbide Insert, Grade TP1501, TiCN - Seco 02960403
MFR# 02960403ISO/ANSI# TCMT21.52-F1Series TCMT-F1
$14.57List $18.68
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC1/4
ShapeTriangle
GradeTP1501
MaterialCarbide
CoatingTiCN
Description
The Seco 02960403 is a TCMT110208-F1 carbide indexable insert, grade TP1501, TiCN coated. Suited for steel.
Specifications
Chip breakerF1
Clearance codeC
Coating finishTiCN
Coating processCVD
Corner radius in1/32
Cutting edge styleSharp
Full radiusNo
Hole diameter0.1142
Included angle60degree
Industry standard numberTCMT21.52-F1
Inscribed circle in1/4
Insert handNeutral
Insert holding methodScrew
Insert length0.4331
Insert materialCarbide
Insert shapeTriangle
Insert size code21.52
Insert styleTCMT
Insert thickness in3/32
Iso codeTCMT110208-F1
Lead angle60degree
Length range0.4000 - 0.5000
Manufacturers catalog number02960403
Manufacturer gradeTP1501
Material gradeP10; P20
Maximum depth of cut0.3543
Multi use applicationBack Turning; Boring; Facing; Turning
Multi use toolYes
Number of cutting edges3
Primary workpiece materialSteel
RakePositive
Relief angle7
Secondary workpiece materialCast Iron; Hard Material
Single or multi tippedMulti Tipped
StandardsANSI; ISO
Tolerance codeM
Width0.4331in
Wiper edgeNo
