Seco

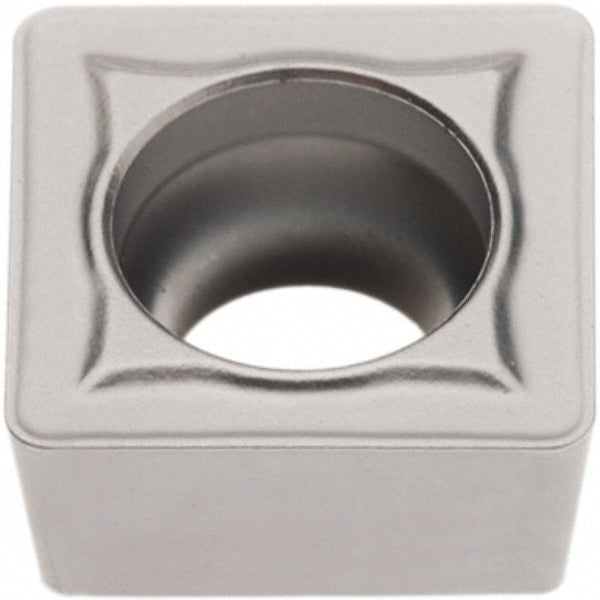

SCMT060204-M3 Carbide Insert, Grade TP2501, TiCN - Seco 02960423
MFR# 02960423ISO/ANSI# SCMT21.51-M3Series SCMT-M3
$13.06List $16.75
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC1/4
ShapeSquare
GradeTP2501
MaterialCarbide
CoatingTiCN
Description
The Seco 02960423 is a SCMT060204-M3 carbide indexable insert, grade TP2501, TiCN coated. Suited for steel.
Specifications
Chip breakerM3
Clearance codeC
Coating finishTiCN
Coating processCVD
Corner radius in1/64
Cutting edge styleChamfered & Honed
Full radiusNo
Hole diameter0.1142
Included angle90degree
Industry standard numberSCMT21.51-M3
Inscribed circle in1/4
Insert handNeutral
Insert holding methodScrew
Insert length in1/4
Insert materialCarbide
Insert shapeSquare
Insert size code21.51
Insert styleSCMT
Insert thickness in3/32
Iso codeSCMT060204-M3
Lead angle90degree
Length range0.0000 - 0.3000
Manufacturers catalog number02960423
Manufacturer gradeTP2501
Material gradeP10; P20; P30; P35
Maximum depth of cut0.2343
Multi use applicationBoring; Facing; Turning
Multi use toolYes
Number of cutting edges4
Primary workpiece materialSteel
RakePositive
Relief angle7
Secondary workpiece materialStainless Steel; Cast Iron
Single or multi tippedMulti Tipped
StandardsANSI; ISO
Tolerance codeM
Width in1/4in
Wiper edgeNo
