Seco

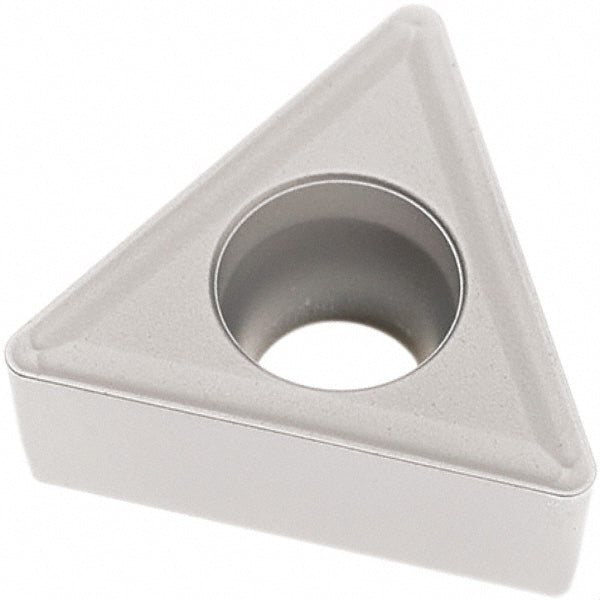

TCMT16T308-M3 Carbide Insert, Grade TP2501, TiCN - Seco 02960433
MFR# 02960433ISO/ANSI# TCMT32.52-M3Series TCMT-M3
$18.60List $23.86
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC3/8
ShapeTriangle
GradeTP2501
MaterialCarbide
CoatingTiCN
Description
The Seco 02960433 is a TCMT16T308-M3 carbide indexable insert, grade TP2501, TiCN coated. Suited for steel.
Specifications
Chip breakerM3
Clearance codeC
Coating finishTiCN
Coating processCVD
Corner radius in1/32
Cutting edge styleChamfered & Honed
Full radiusNo
Hole diameter0.1772
Included angle60degree
Industry standard numberTCMT32.52-M3
Inscribed circle in3/8
Insert handNeutral
Insert holding methodScrew
Insert length0.6496
Insert materialCarbide
Insert shapeTriangle
Insert size code32.52
Insert styleTCMT
Insert thickness in5/32
Iso codeTCMT16T308-M3
Lead angle60degree
Length range0.6000 - 0.6500
Manufacturers catalog number02960433
Manufacturer gradeTP2501
Material gradeP10; P20; P30; P35
Maximum depth of cut0.5709
Multi use applicationBack Turning; Boring; Facing; Turning
Multi use toolYes
Number of cutting edges3
Primary workpiece materialSteel
RakePositive
Relief angle7
Secondary workpiece materialStainless Steel; Cast Iron
Single or multi tippedMulti Tipped
StandardsANSI; ISO
Tolerance codeM
Width0.6496in
Wiper edgeNo
