Seco

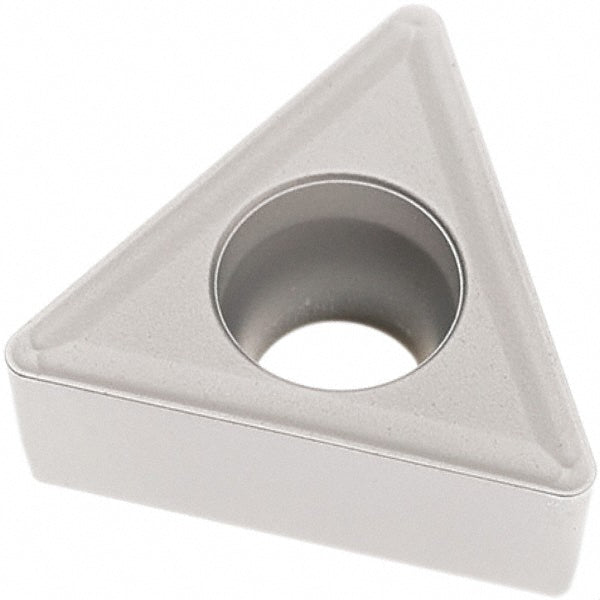

TCMT220408-M3 Carbide Insert, Grade TP1501, TiCN - Seco 02960434
MFR# 02960434ISO/ANSI# TCMT432-M3Series TCMT-M3
$24.60List $31.55
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC1/2
ShapeTriangle
GradeTP1501
MaterialCarbide
CoatingTiCN
Description
The Seco 02960434 is a TCMT220408-M3 carbide indexable insert, grade TP1501, TiCN coated. Suited for steel.
Specifications
Chip breakerM3
Clearance codeC
Coating finishTiCN
Coating processCVD
Corner radius in1/32
Cutting edge styleChamfered & Honed
Full radiusNo
Hole diameter0.2205
Included angle60degree
Industry standard numberTCMT432-M3
Inscribed circle in1/2
Insert handNeutral
Insert holding methodScrew
Insert length0.8661
Insert materialCarbide
Insert shapeTriangle
Insert size code432
Insert styleTCMT
Insert thickness in3/16
Iso codeTCMT220408-M3
Lead angle60degree
Length range0.7000 - 10.0000
Manufacturers catalog number02960434
Manufacturer gradeTP1501
Material gradeP10; P20
Maximum depth of cut0.7874
Multi use applicationBack Turning; Boring; Facing; Turning
Multi use toolYes
Number of cutting edges3
Primary workpiece materialSteel
RakePositive
Relief angle7
Secondary workpiece materialCast Iron; Hard Material
Single or multi tippedMulti Tipped
StandardsANSI; ISO
Tolerance codeM
Width0.8661in
Wiper edgeNo
