Seco

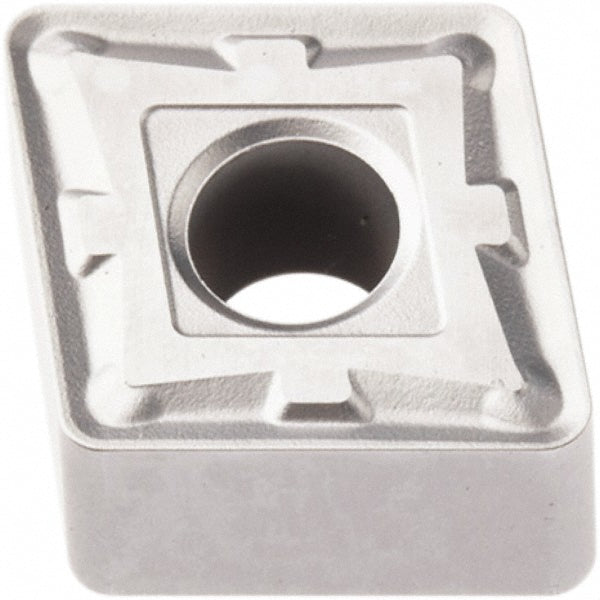

CNMG190608-M3 Carbide Insert, Grade TP1501, TiCN - Seco 02960436
MFR# 02960436ISO/ANSI# CNMG642-M3Series CNMG-M3
$42.04List $53.91
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC3/4
ShapeDiamond 80
GradeTP1501
MaterialCarbide
CoatingTiCN
Description
The Seco 02960436 is a CNMG190608-M3 carbide indexable insert, grade TP1501, TiCN coated. Suited for steel.
Specifications
Chip breakerM3
Clearance codeN
Coating finishTiCN
Coating processCVD
Corner radius in1/32
Cutting edge styleChamfered & Honed
Full radiusNo
Hole diameter0.3118
Included angle80degree
Industry standard numberCNMG642-M3
Inscribed circle in3/4
Insert handNeutral
Insert holding methodClamp; Pin; Lever Lock
Insert length0.7598
Insert materialCarbide
Insert shapeDiamond 80
Insert size code642
Insert styleCNMG
Insert thickness in1/4
Iso codeCNMG190608-M3
Lead angle80degree
Length range0.7000 - 10.0000
Manufacturers catalog number02960436
Manufacturer gradeTP1501
Material gradeP10; P20
Maximum depth of cut0.7283
Multi use applicationBoring; Facing; Turning
Multi use toolYes
Number of cutting edges4
Primary workpiece materialSteel
RakeNegative
Relief angle0
Secondary workpiece materialCast Iron; Hard Material
Single or multi tippedMulti Tipped
StandardsANSI; ISO
Tolerance codeM
Width in3/4in
Wiper edgeNo
