CNMG190612-MR7 Carbide Insert, Grade TP1501, TiCN - Seco 02960475

Seco

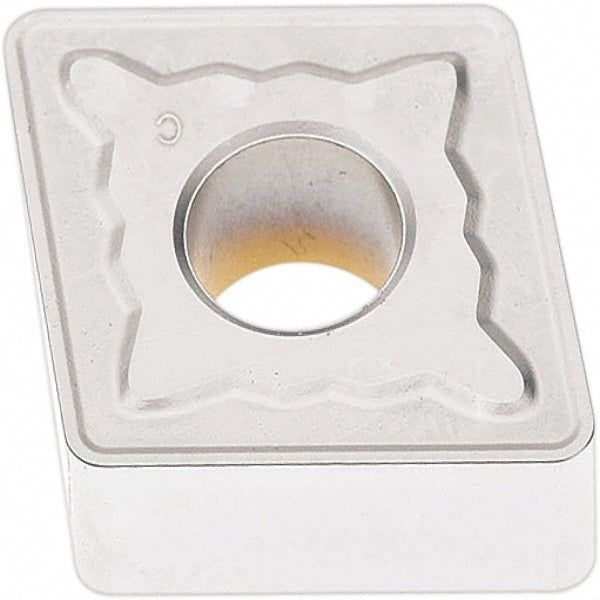

CNMG190612-MR7 Carbide Insert, Grade TP1501, TiCN - Seco 02960475

MFR# 02960475ISO/ANSI# CNMG190612Series CNMG-MR7

$38.23List $49.03 Save 22%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
IC3/4
ShapeC - Diamond (Rhombic) 80-Deg
GradeTP1501
MaterialCarbide
CoatingTiCN

Description

The Seco 02960475 is a CNMG190612-MR7 carbide indexable insert, grade TP1501, TiCN coated. Suited for steel.

Specifications

Ansi insert codeCNMG643
Ansi size code643
Chip breakerMR7
Chip breaker operationRoughing; Medium Machining
Clearance codeN
Coating finishTiCN
Coating processCVD
Corner radius in3/64
Cutting edge styleT-Land
Full radiusNo
Grade characteristicsSteel (P) - High Wear-Resistance to Moderate Wear-Resistance and Toughness; Cast Iron (K) - High Wear-Resistance to Moderate Wear-Resistance and Toughness
Hole diameter0.3118
Included angle80
Industry standard numberCNMG643-MR7
Inscribed circle in3/4
Insert handNeutral
Insert holding methodClamp; Pin; Lever Lock
Insert length0.7598
Insert materialCarbide
Insert shapeC - Diamond (Rhombic) 80-Deg
Insert size code643
Insert styleCNMG
Insert thickness in1/4
Iso codeCNMG190612-MR7
Iso insert codeCNMG190612
Iso size code190612
Lead angle80
Length range0.7000 - 10.0000
Manufacturers catalog number02960475
Manufacturer gradeTP1501
Material gradeP10; P20
Maximum depth of cut0.7126
Multi use applicationBoring; Facing; Turning
Multi use toolYes
Number of cutting edges4
Primary workpiece materialSteel
RakeNegative
Relief angle0
Secondary workpiece materialCast Iron; Hard Material
Side clearanceNegative
Single or multi tippedMulti Tipped
StandardsANSI; ISO
Tolerance codeM
Width in3/4
Wiper edgeNo
