Seco

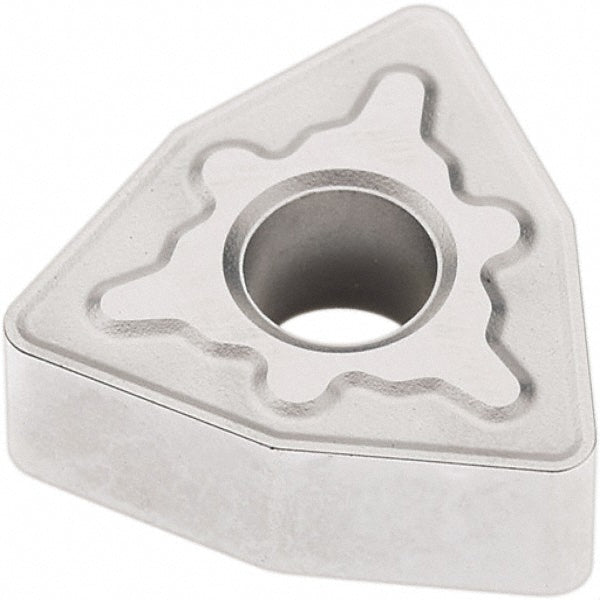

WNMG080408-MR7 Carbide Insert, Grade TP2501, TiCN - Seco 02960480
MFR# 02960480ISO/ANSI# WNMG432-MR7Series WNMG-MR7
$21.05List $27.00
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC1/2
ShapeTrigon
GradeTP2501
MaterialCarbide
CoatingTiCN
Description
The Seco 02960480 is a WNMG080408-MR7 carbide indexable insert, grade TP2501, TiCN coated. Suited for steel.
Specifications
Chip breakerMR7
Clearance codeN
Coating finishTiCN
Coating processCVD
Corner radius in1/32
Cutting edge styleT-Land
Full radiusNo
Hole diameter0.2028
Included angle80degree
Industry standard numberWNMG432-MR7
Inscribed circle in1/2
Insert handNeutral
Insert holding methodClamp; Pin; Lever Lock
Insert length0.6850
Insert materialCarbide
Insert shapeTrigon
Insert size code432
Insert styleWNMG
Insert thickness in3/16
Iso codeWNMG080408-MR7
Lead angle80degree
Length range0.6500 - 0.7000
Manufacturers catalog number02960480
Manufacturer gradeTP2501
Material gradeP10; P20; P30; P35
Maximum depth of cut0.3307
Multi use applicationBoring; Facing; Turning
Multi use toolYes
Number of cutting edges6
Primary workpiece materialSteel
RakeNegative
Relief angle0
Secondary workpiece materialStainless Steel; Cast Iron
Single or multi tippedMulti Tipped
StandardsANSI; ISO
Tolerance codeM
Width in1/2in
Wiper edgeNo
