Seco

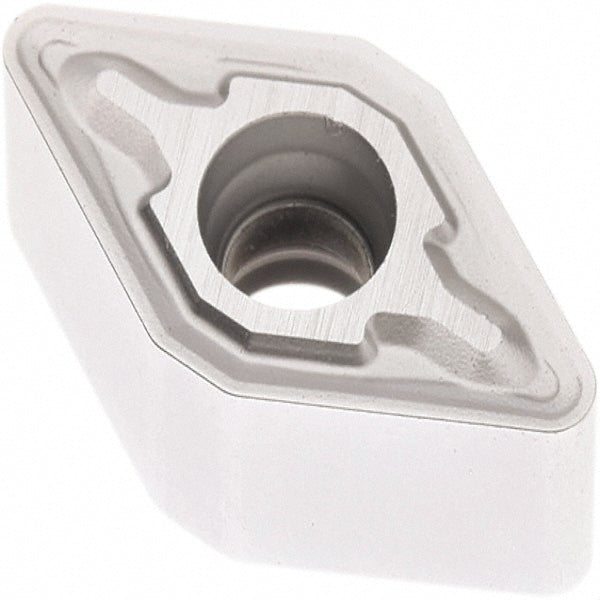

DNMU110408-M5 Carbide Insert, Grade TP1501, TiCN - Seco 02960514
MFR# 02960514ISO/ANSI# DNMU332-M5Series DNMU-M5
$19.96List $25.59
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC3/8
ShapeDiamond 55
GradeTP1501
MaterialCarbide
CoatingTiCN
Description
The Seco 02960514 is a DNMU110408-M5 carbide indexable insert, grade TP1501, TiCN coated. Suited for steel.
Specifications
Chip breakerM5
Clearance codeN
Coating finishTiCN
Coating processCVD
Corner radius in1/32
Cutting edge styleChamfered & Honed
Full radiusNo
Hole diameter0.1500
Included angle55degree
Industry standard numberDNMU332-M5
Inscribed circle in3/8
Insert handNeutral
Insert holding methodClamp; Pin; Lever Lock
Insert length0.9134
Insert materialCarbide
Insert shapeDiamond 55
Insert size code332
Insert styleDNMU
Insert thickness in3/16
Iso codeDNMU110408-M5
Lead angle55degree
Length range0.7000 - 10.0000
Manufacturers catalog number02960514
Manufacturer gradeTP1501
Material gradeP10; P20
Maximum depth of cut0.4252
Multi use applicationBack Turning; Boring; Facing; Turning
Multi use toolYes
Number of cutting edges4
Primary workpiece materialSteel
RakeNegative
Relief angle0
Secondary workpiece materialCast Iron; Hard Material
Single or multi tippedMulti Tipped
StandardsANSI; ISO
Tolerance codeM
Width in3/8in
Wiper edgeNo
