Seco

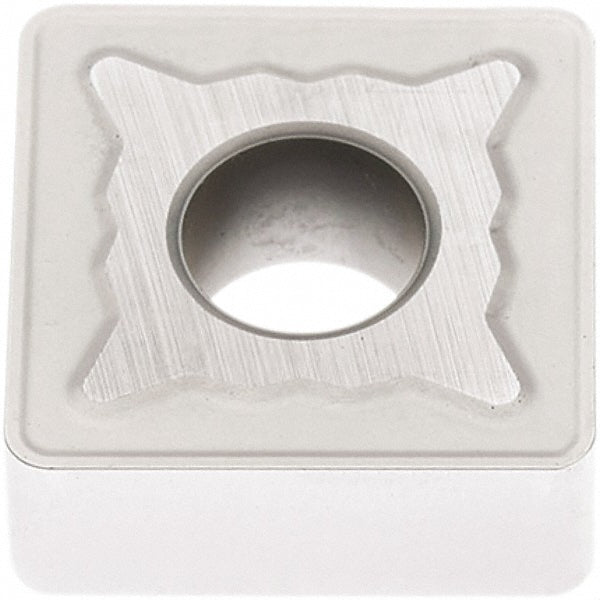

SNMG120416-MR7 Carbide Insert, Grade TP2501, TiCN - Seco 02960532
MFR# 02960532ISO/ANSI# SNMG434-MR7Series SNMG-MR7
$19.12List $24.52
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC1/2
ShapeSquare
GradeTP2501
MaterialCarbide
CoatingTiCN
Description
The Seco 02960532 is a SNMG120416-MR7 carbide indexable insert, grade TP2501, TiCN coated. Suited for steel.
Specifications
Chip breakerMR7
Clearance codeN
Coating finishTiCN
Coating processCVD
Corner radius in1/16
Cutting edge styleT-Land
Full radiusNo
Hole diameter0.2028
Included angle90degree
Industry standard numberSNMG434-MR7
Inscribed circle in1/2
Insert handNeutral
Insert holding methodClamp; Pin; Lever Lock
Insert length in1/2
Insert materialCarbide
Insert shapeSquare
Insert size code434
Insert styleSNMG
Insert thickness in3/16
Iso codeSNMG120416-MR7
Lead angle90degree
Length range0.5000 - 0.6000
Manufacturers catalog number02960532
Manufacturer gradeTP2501
Material gradeP10; P20; P30; P35
Maximum depth of cut0.4370
Multi use applicationBoring; Facing; Turning
Multi use toolYes
Number of cutting edges8
Primary workpiece materialSteel
RakeNegative
Relief angle0
Secondary workpiece materialStainless Steel; Cast Iron
Single or multi tippedMulti Tipped
StandardsANSI; ISO
Tolerance codeM
Width in1/2in
Wiper edgeNo
