Seco

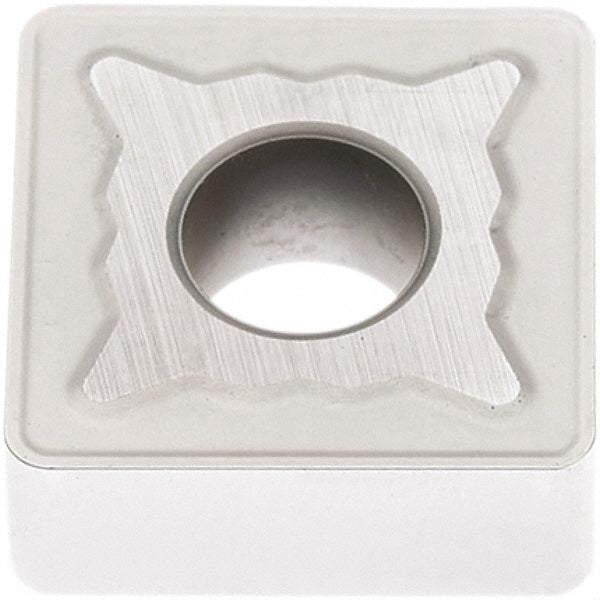

SNMG150612-MR7 Carbide Insert, Grade TP2501, TiCN - Seco 02960533
MFR# 02960533ISO/ANSI# SNMG543-MR7Series SNMG-MR7
$30.15List $38.66
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC5/8
ShapeSquare
GradeTP2501
MaterialCarbide
CoatingTiCN
Description
The Seco 02960533 is a SNMG150612-MR7 carbide indexable insert, grade TP2501, TiCN coated. Suited for steel.
Specifications
Chip breakerMR7
Clearance codeN
Coating finishTiCN
Coating processCVD
Corner radius in3/64
Cutting edge styleT-Land
Full radiusNo
Hole diameter0.2500
Included angle90degree
Industry standard numberSNMG543-MR7
Inscribed circle in5/8
Insert handNeutral
Insert holding methodClamp; Pin; Lever Lock
Insert length in5/8
Insert materialCarbide
Insert shapeSquare
Insert size code543
Insert styleSNMG
Insert thickness in1/4
Iso codeSNMG150612-MR7
Lead angle90degree
Length range0.6000 - 0.6500
Manufacturers catalog number02960533
Manufacturer gradeTP2501
Material gradeP10; P20; P30; P35
Maximum depth of cut0.5787
Multi use applicationBoring; Facing; Turning
Multi use toolYes
Number of cutting edges8
Primary workpiece materialSteel
RakeNegative
Relief angle0
Secondary workpiece materialStainless Steel; Cast Iron
Single or multi tippedMulti Tipped
StandardsANSI; ISO
Tolerance codeM
Width in5/8in
Wiper edgeNo
