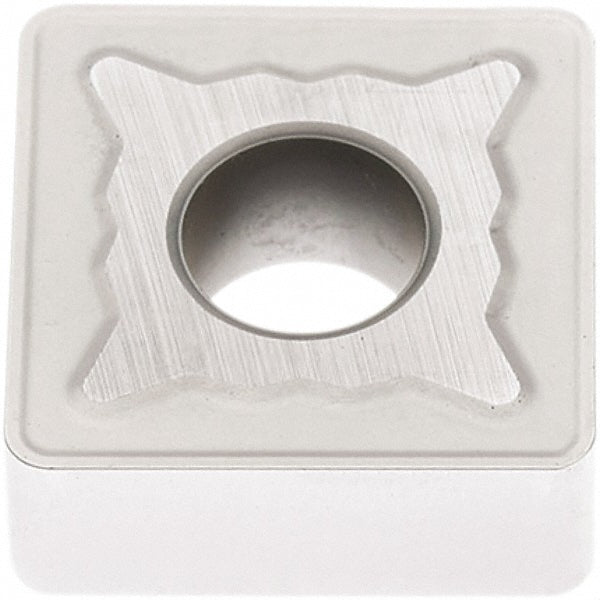

SNMG190612-MR7 Carbide Insert, Grade TP2501, TiCN - Seco 02960535

Seco

SNMG190612-MR7 Carbide Insert, Grade TP2501, TiCN - Seco 02960535

MFR# 02960535ISO/ANSI# SNMG643-MR7Series SNMG-MR7

$42.04List $53.91 Save 22%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
IC3/4
ShapeSquare
GradeTP2501
MaterialCarbide
CoatingTiCN

Description

The Seco 02960535 is a SNMG190612-MR7 carbide indexable insert, grade TP2501, TiCN coated. Suited for steel.

Specifications

Chip breakerMR7
Clearance codeN
Coating finishTiCN
Coating processCVD
Corner radius in3/64
Cutting edge styleT-Land
Full radiusNo
Hole diameter0.3118
Included angle90degree
Industry standard numberSNMG643-MR7
Inscribed circle in3/4
Insert handNeutral
Insert holding methodClamp; Pin; Lever Lock
Insert length in3/4
Insert materialCarbide
Insert shapeSquare
Insert size code643
Insert styleSNMG
Insert thickness in1/4
Iso codeSNMG190612-MR7
Lead angle90degree
Length range0.7000 - 10.0000
Manufacturers catalog number02960535
Manufacturer gradeTP2501
Material gradeP10; P20; P30; P35
Maximum depth of cut0.7008
Multi use applicationBoring; Facing; Turning
Multi use toolYes
Number of cutting edges8
Primary workpiece materialSteel
RakeNegative
Relief angle0
Secondary workpiece materialStainless Steel; Cast Iron
Single or multi tippedMulti Tipped
StandardsANSI; ISO
Tolerance codeM
Width in3/4in
Wiper edgeNo
