Seco

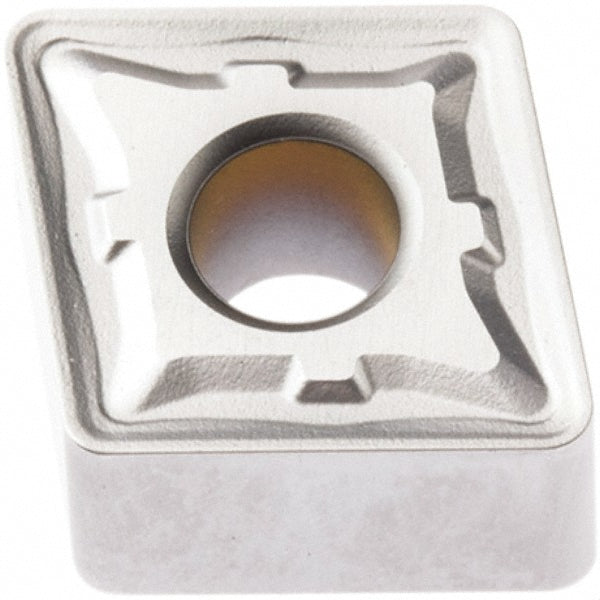

CNMG190612-M5 Carbide Insert, Grade TP2501, TiCN - Seco 02960544
MFR# 02960544ISO/ANSI# CNMG643-M5Series CNMG-M5
$42.04List $53.91
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC3/4
ShapeDiamond 80
GradeTP2501
MaterialCarbide
CoatingTiCN
Description
The Seco 02960544 is a CNMG190612-M5 carbide indexable insert, grade TP2501, TiCN coated. Suited for steel.
Specifications
Chip breakerM5
Clearance codeN
Coating finishTiCN
Coating processCVD
Corner radius in3/64
Cutting edge styleChamfered & Honed
Full radiusNo
Hole diameter0.3118
Included angle80degree
Industry standard numberCNMG643-M5
Inscribed circle in3/4
Insert handNeutral
Insert holding methodClamp; Pin; Lever Lock
Insert length0.7598
Insert materialCarbide
Insert shapeDiamond 80
Insert size code643
Insert styleCNMG
Insert thickness in1/4
Iso codeCNMG190612-M5
Lead angle80degree
Length range0.7000 - 10.0000
Manufacturers catalog number02960544
Manufacturer gradeTP2501
Material gradeP10; P20; P30; P35
Maximum depth of cut0.7126
Multi use applicationBoring; Facing; Turning
Multi use toolYes
Number of cutting edges4
Primary workpiece materialSteel
RakeNegative
Relief angle0
Secondary workpiece materialStainless Steel; Cast Iron
Single or multi tippedMulti Tipped
StandardsANSI; ISO
Tolerance codeM
Width in3/4in
Wiper edgeNo
