Seco

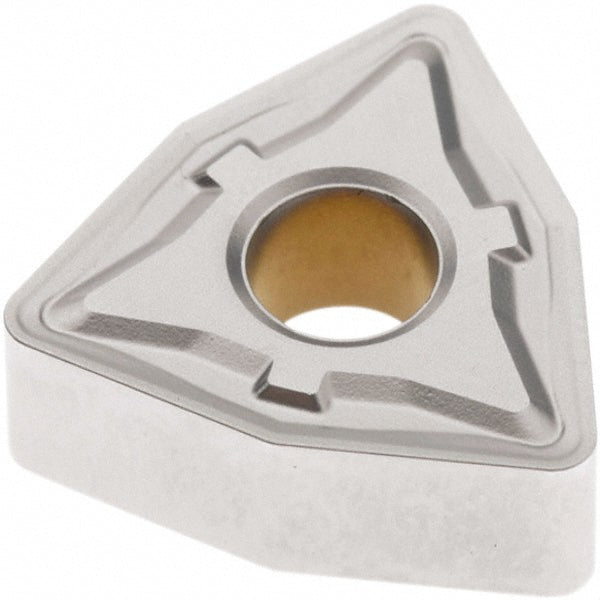

WNMG080412-M5 Carbide Insert, Grade TP0501, TiCN - Seco 02960554
MFR# 02960554ISO/ANSI# WNMG433-M5Series WNMG-M5
$21.05List $27.00
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC1/2
ShapeTrigon
GradeTP0501
MaterialCarbide
CoatingTiCN
Description
The Seco 02960554 is a WNMG080412-M5 carbide indexable insert, grade TP0501, TiCN coated. Suited for steel.
Specifications
Chip breakerM5
Clearance codeN
Coating finishTiCN
Coating processCVD
Corner radius in3/64
Cutting edge styleChamfered & Honed
Full radiusNo
Hole diameter0.2028
Included angle80degree
Industry standard numberWNMG433-M5
Inscribed circle in1/2
Insert handNeutral
Insert holding methodClamp; Pin; Lever Lock
Insert length0.6850
Insert materialCarbide
Insert shapeTrigon
Insert size code433
Insert styleWNMG
Insert thickness in3/16
Iso codeWNMG080412-M5
Lead angle80degree
Length range0.6500 - 0.7000
Manufacturers catalog number02960554
Manufacturer gradeTP0501
Material gradeP01; P10
Maximum depth of cut0.3228
Multi use applicationBoring; Facing; Turning
Multi use toolYes
Number of cutting edges6
Primary workpiece materialSteel
RakeNegative
Relief angle0
Secondary workpiece materialCast Iron
Single or multi tippedMulti Tipped
StandardsANSI; ISO
Tolerance codeM
Width in1/2in
Wiper edgeNo
