Seco

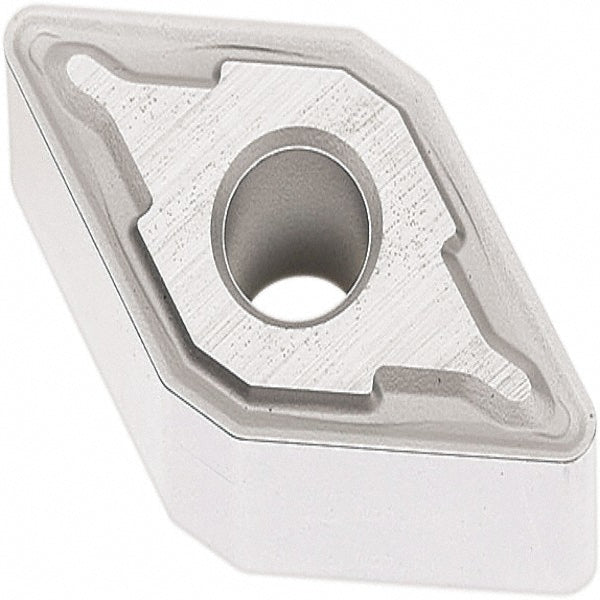

DNMG150612-M5 Carbide Insert, Grade TP1501, TiCN - Seco 02960563
MFR# 02960563ISO/ANSI# DNMG443-M5Series DNMG-M5
$23.83List $30.56
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC1/2
ShapeDiamond 55
GradeTP1501
MaterialCarbide
CoatingTiCN
Description
The Seco 02960563 is a DNMG150612-M5 carbide indexable insert, grade TP1501, TiCN coated. Suited for steel.
Specifications
Chip breakerM5
Clearance codeN
Coating finishTiCN
Coating processCVD
Corner radius in3/64
Cutting edge styleChamfered & Honed
Full radiusNo
Hole diameter0.2028
Included angle55degree
Industry standard numberDNMG443-M5
Inscribed circle in1/2
Insert handNeutral
Insert holding methodClamp; Pin; Lever Lock
Insert length1.2204
Insert materialCarbide
Insert shapeDiamond 55
Insert size code443
Insert styleDNMG
Insert thickness in1/4
Iso codeDNMG150612-M5
Lead angle55degree
Length range0.7000 - 10.0000
Manufacturers catalog number02960563
Manufacturer gradeTP1501
Material gradeP10; P20
Maximum depth of cut0.5630
Multi use applicationBack Turning; Boring; Facing; Turning
Multi use toolYes
Number of cutting edges4
Primary workpiece materialSteel
RakeNegative
Relief angle0
Secondary workpiece materialCast Iron; Hard Material
Single or multi tippedMulti Tipped
StandardsANSI; ISO
Tolerance codeM
Width in1/2in
Wiper edgeNo
