Seco

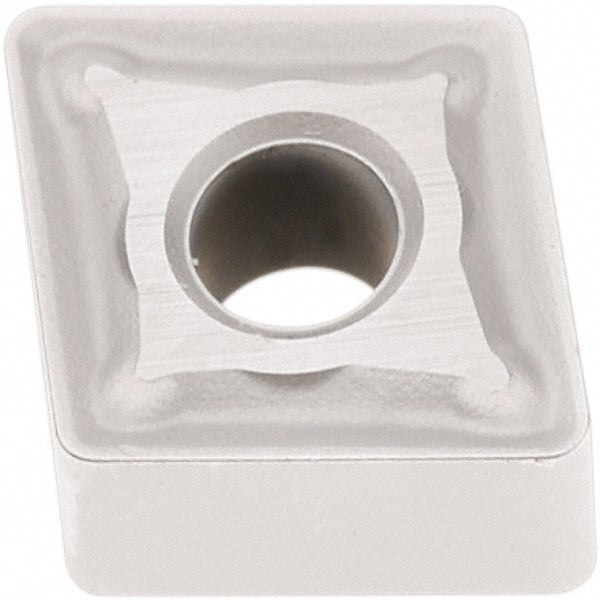

CNMG090308-M3 Carbide Insert, Grade TP2501, TiCN - Seco 02960681
MFR# 02960681ISO/ANSI# CNMG322-M3Series CNMG-M3
$12.54List $16.09
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC3/8
ShapeDiamond 80
GradeTP2501
MaterialCarbide
CoatingTiCN
Description
The Seco 02960681 is a CNMG090308-M3 carbide indexable insert, grade TP2501, TiCN coated. Suited for steel.
Specifications
Chip breakerM3
Clearance codeN
Coating finishTiCN
Coating processCVD
Corner radius in1/32
Cutting edge styleChamfered & Honed
Full radiusNo
Hole diameter0.1500
Included angle80degree
Industry standard numberCNMG322-M3
Inscribed circle in3/8
Insert handNeutral
Insert holding methodClamp; Pin; Lever Lock
Insert length0.3819
Insert materialCarbide
Insert shapeDiamond 80
Insert size code322
Insert styleCNMG
Insert thickness in1/8
Iso codeCNMG090308-M3
Lead angle80degree
Length range0.3000 - 0.4000
Manufacturers catalog number02960681
Manufacturer gradeTP2501
Material gradeP10; P20; P30; P35
Maximum depth of cut0.3504
Multi use applicationBoring; Facing; Turning
Multi use toolYes
Number of cutting edges4
Primary workpiece materialSteel
RakeNegative
Relief angle0
Secondary workpiece materialStainless Steel; Cast Iron
Single or multi tippedMulti Tipped
StandardsANSI; ISO
Tolerance codeM
Width in3/8in
Wiper edgeNo
