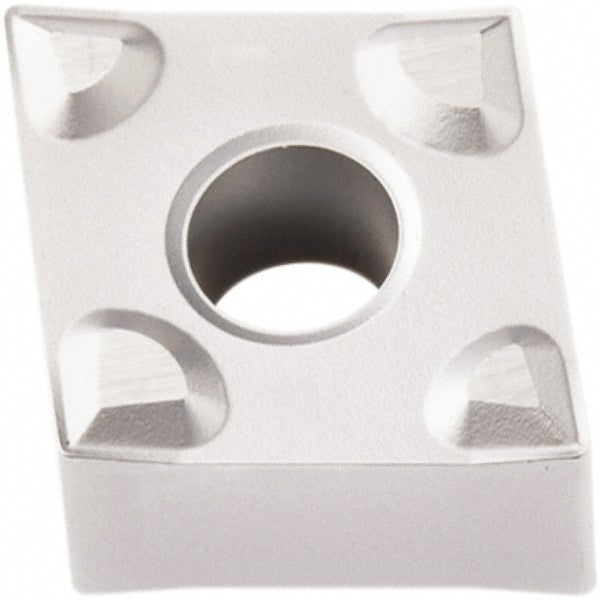

CNMG120404-FF1 Carbide Insert, Grade TP2501, TiCN - Seco 02960686

Seco

CNMG120404-FF1 Carbide Insert, Grade TP2501, TiCN - Seco 02960686

MFR# 02960686ISO/ANSI# CNMG120404Series CNMG-FF1

$19.12List $24.52 Save 22%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
IC1/2
ShapeC - Diamond (Rhombic) 80-Deg
GradeTP2501
MaterialCarbide
CoatingTiCN

Description

The Seco 02960686 is a CNMG120404-FF1 carbide indexable insert, grade TP2501, TiCN coated. Suited for steel.

Specifications

Ansi insert codeCNMG431
Ansi size code431
Chip breakerFF1
Chip breaker operationFinishing
Clearance codeN
Coating finishTiCN
Coating processCVD
Corner radius in1/64
Cutting edge styleHoned
Full radiusNo
Grade characteristicsSteel (P) - High Wear-Resistance to High Toughness; Stainless Steel (M) - High Wear-Resistance to Moderate Wear-Resistance and Toughness; Cast Iron (K) - Moderate Wear-Resistance and Toughness to High Toughness
Hole diameter0.2028
Included angle80
Industry standard numberCNMG431-FF1
Inscribed circle in1/2
Insert handNeutral
Insert holding methodClamp; Pin; Lever Lock
Insert length0.5079
Insert materialCarbide
Insert shapeC - Diamond (Rhombic) 80-Deg
Insert size code431
Insert styleCNMG
Insert thickness in3/16
Iso codeCNMG120404-FF1
Iso insert codeCNMG120404
Iso size code120404
Lead angle80
Length range0.5000 - 0.6000
Manufacturers catalog number02960686
Manufacturer gradeTP2501
Material gradeP10; P20; P30; P35
Maximum depth of cut0.4921
Multi use applicationBoring; Facing; Turning
Multi use toolYes
Number of cutting edges4
Primary workpiece materialSteel
RakeNegative
Relief angle0
Secondary workpiece materialStainless Steel; Cast Iron
Side clearanceNegative
Single or multi tippedMulti Tipped
StandardsANSI; ISO
Tolerance codeM
Width in1/2
Wiper edgeNo
