Seco

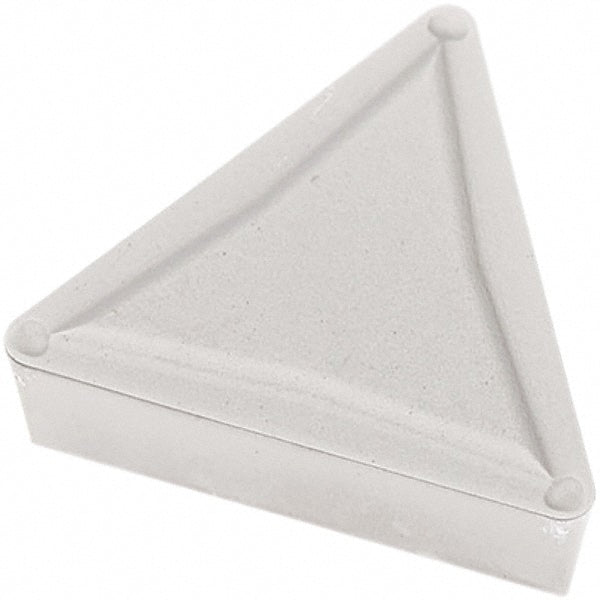

TPMR160304-M3 Carbide Insert, Grade TP2501, TiCN - Seco 02960699
MFR# 02960699ISO/ANSI# TPMR321-M3Series TPMR-M3
$16.50List $21.16
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC3/8
ShapeTriangle
GradeTP2501
MaterialCarbide
CoatingTiCN
Description
The Seco 02960699 is a TPMR160304-M3 carbide indexable insert, grade TP2501, TiCN coated. Suited for steel.
Specifications
Chip breakerM3
Clearance codeP
Coating finishTiCN
Coating processCVD
Corner radius in1/64
Cutting edge styleChamfered & Honed
Full radiusNo
Included angle60degree
Industry standard numberTPMR321-M3
Inscribed circle in3/8
Insert handNeutral
Insert holding methodClamp
Insert length0.6496
Insert materialCarbide
Insert shapeTriangle
Insert size code321
Insert styleTPMR
Insert thickness in1/8
Iso codeTPMR160304-M3
Lead angle60degree
Length range0.6000 - 0.6500
Manufacturers catalog number02960699
Manufacturer gradeTP2501
Material gradeP10; P20; P30; P35
Maximum depth of cut0.6339
Multi use applicationBack Turning; Boring; Facing; Turning
Multi use toolYes
Number of cutting edges3
Primary workpiece materialSteel
RakePositive
Relief angle11
Secondary workpiece materialStainless Steel; Cast Iron
Single or multi tippedMulti Tipped
StandardsANSI; ISO
Tolerance codeM
Width0.6496in
Wiper edgeNo
