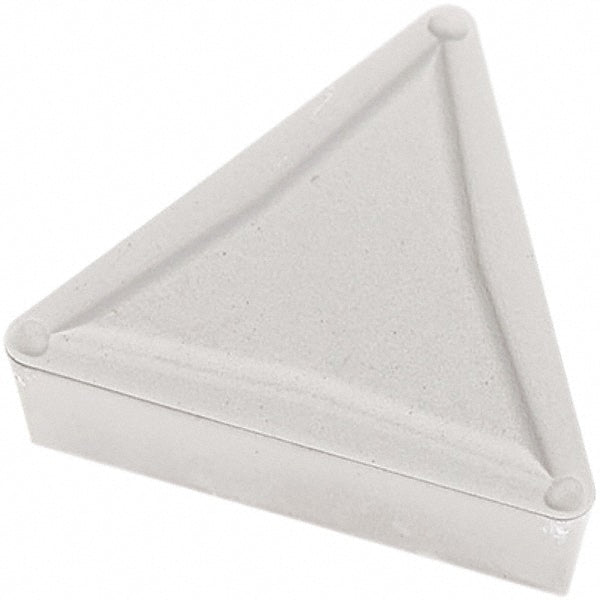

TPMR220408-M3 Carbide Insert, Grade TP2501, TiCN - Seco 02960701

Seco

TPMR220408-M3 Carbide Insert, Grade TP2501, TiCN - Seco 02960701

MFR# 02960701ISO/ANSI# TPMR432-M3Series TPMR-M3

$25.07List $32.16 Save 22%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
IC1/2
ShapeTriangle
GradeTP2501
MaterialCarbide
CoatingTiCN

Description

The Seco 02960701 is a TPMR220408-M3 carbide indexable insert, grade TP2501, TiCN coated. Suited for steel.

Specifications

Chip breakerM3
Clearance codeP
Coating finishTiCN
Coating processCVD
Corner radius in1/32
Cutting edge styleChamfered & Honed
Full radiusNo
Included angle60degree
Industry standard numberTPMR432-M3
Inscribed circle in1/2
Insert handNeutral
Insert holding methodClamp
Insert length0.8661
Insert materialCarbide
Insert shapeTriangle
Insert size code432
Insert styleTPMR
Insert thickness in3/16
Iso codeTPMR220408-M3
Lead angle60degree
Length range0.7000 - 10.0000
Manufacturers catalog number02960701
Manufacturer gradeTP2501
Material gradeP10; P20; P30; P35
Maximum depth of cut0.8349
Multi use applicationBack Turning; Boring; Facing; Turning
Multi use toolYes
Number of cutting edges3
Primary workpiece materialSteel
RakePositive
Relief angle11
Secondary workpiece materialStainless Steel; Cast Iron
Single or multi tippedMulti Tipped
StandardsANSI; ISO
Tolerance codeM
Width0.8661in
Wiper edgeNo
