Seco

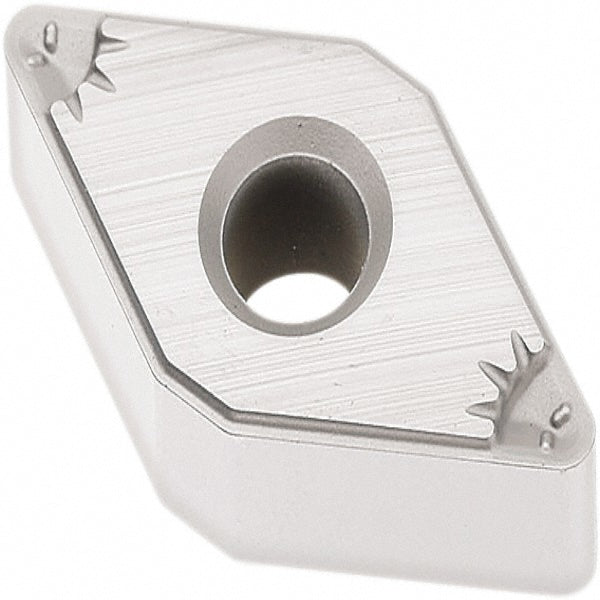

DNMG150412-MF5 Carbide Insert, Grade TP2501, TiCN - Seco 02960741
MFR# 02960741ISO/ANSI# DNMG150412Series DNMG-MF5
$28.58List $36.02
Save 20%
Usually ships in 1-3 business days
Ship times are estimates. We confirm availability on every order and email you right away if anything changes.
Supplier prices are confirmed before checkout. If one has changed since this page was updated, we show you the new price before you pay.
Request a quote- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC1/2
ShapeD - Diamond (Rhombic) 55-Deg
GradeTP2501
MaterialCarbide
CoatingTiCN
Description
The Seco 02960741 is a DNMG150412-MF5 carbide indexable insert, grade TP2501, TiCN coated. Suited for steel.
Specifications
Ansi insert codeDNMG433
Ansi size code433
Chip breakerMF5
Chip breaker operationFinishing; Medium Machining
Clearance codeN
Coating finishTiCN
Coating processCVD
Corner radius in3/64
Cutting edge styleChamfered; Honed
Full radiusNo
Grade characteristicsSteel (P) - High Wear-Resistance to High Toughness; Stainless Steel (M) - High Wear-Resistance to Moderate Wear-Resistance and Toughness; Cast Iron (K) - Moderate Wear-Resistance and Toughness to High Toughness
Hole diameter0.2028
Included angle55
Industry standard numberDNMG433-MF5
Inscribed circle in1/2
Insert handNeutral
Insert holding methodClamp; Pin; Lever Lock
Insert length1.2204
Insert materialCarbide
Insert shapeD - Diamond (Rhombic) 55-Deg
Insert size code433
Insert styleDNMG
Insert thickness in3/16
Iso codeDNMG150412-MF5
Iso insert codeDNMG150412
Iso size code150412
Lead angle55
Length range0.7000 - 10.0000
Manufacturers catalog number02960741
Manufacturer gradeTP2501
Material gradeP10; P20; P30; P35
Maximum depth of cut0.1063
Multi use applicationBack Turning; Boring; Facing; Turning
Multi use toolYes
Number of cutting edges4
Primary workpiece materialSteel
RakeNegative
Relief angle0
Secondary workpiece materialStainless Steel; Cast Iron
Side clearanceNegative
Single or multi tippedMulti Tipped
StandardsANSI; ISO
Tolerance codeM
Width in1/2
Wiper edgeNo
