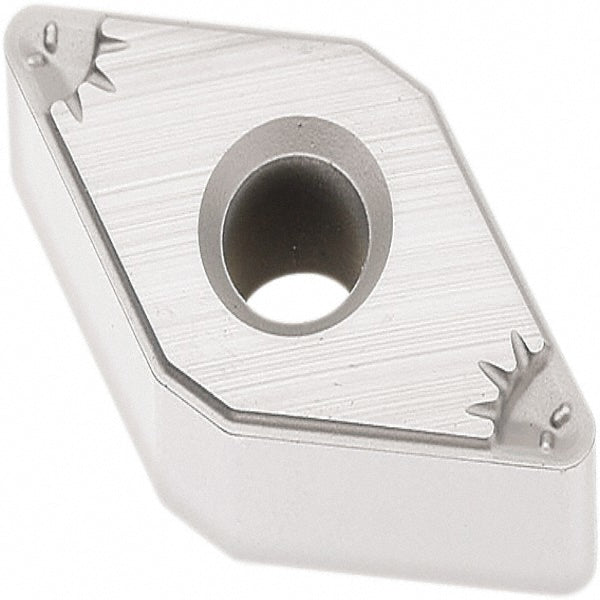

DNMG150408-MF5 Carbide Insert, Grade TP2501, TiCN - Seco 02960746

Seco

DNMG150408-MF5 Carbide Insert, Grade TP2501, TiCN - Seco 02960746

MFR# 02960746ISO/ANSI# DNMG432-MF5Series DNMG-MF5

$24.08List $30.89 Save 22%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
IC1/2
ShapeDiamond 55
GradeTP2501
MaterialCarbide
CoatingTiCN

Description

The Seco 02960746 is a DNMG150408-MF5 carbide indexable insert, grade TP2501, TiCN coated. Suited for steel.

Specifications

Chip breakerMF5
Clearance codeN
Coating finishTiCN
Coating processCVD
Corner radius in1/32
Cutting edge styleChamfered & Honed
Full radiusNo
Hole diameter0.2028
Included angle55degree
Industry standard numberDNMG432-MF5
Inscribed circle in1/2
Insert handNeutral
Insert holding methodClamp; Pin; Lever Lock
Insert length1.2204
Insert materialCarbide
Insert shapeDiamond 55
Insert size code432
Insert styleDNMG
Insert thickness in3/16
Iso codeDNMG150408-MF5
Lead angle55degree
Length range0.7000 - 10.0000
Manufacturers catalog number02960746
Manufacturer gradeTP2501
Material gradeP10; P20; P30; P35
Maximum depth of cut0.1063
Multi use applicationBack Turning; Boring; Facing; Turning
Multi use toolYes
Number of cutting edges4
Primary workpiece materialSteel
RakeNegative
Relief angle0
Secondary workpiece materialStainless Steel; Cast Iron
Single or multi tippedMulti Tipped
StandardsANSI; ISO
Tolerance codeM
Width in1/2in
Wiper edgeNo
