Seco

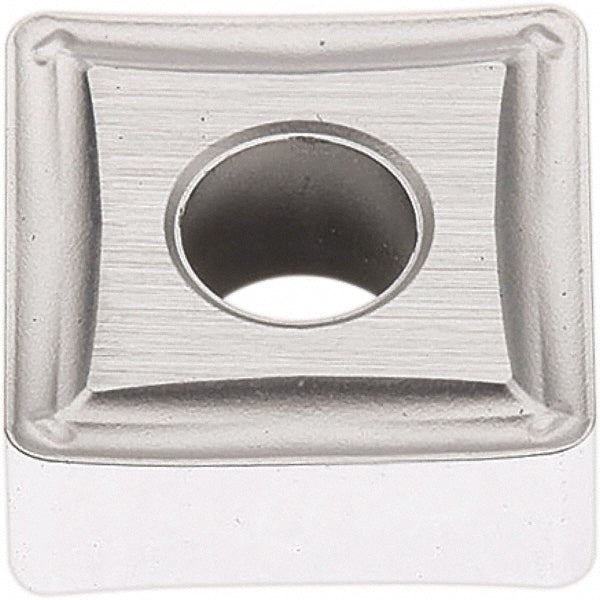

SNMG090308-MF2 Carbide Insert, Grade TP2501, TiCN - Seco 02960750
MFR# 02960750ISO/ANSI# SNMG322-MF2Series SNMG-MF2
$15.34List $19.34
Save 20%
Usually ships in 1-3 business days
Ship times are estimates. We confirm availability on every order and email you right away if anything changes.
⚡ Need it urgently? Confirm stock & ship time →
Sold in multiples of 10 — minimum order 10
Request a quote- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC3/8
ShapeSquare
GradeTP2501
MaterialCarbide
CoatingTiCN
Description
The Seco 02960750 is a SNMG090308-MF2 carbide indexable insert, grade TP2501, TiCN coated. Suited for steel.
Specifications
Chip breakerMF2
Clearance codeN
Coating finishTiCN
Coating processCVD
Corner radius in1/32
Cutting edge styleChamfered & Honed
Full radiusNo
Hole diameter0.1500
Included angle90degree
Industry standard numberSNMG322-MF2
Inscribed circle in3/8
Insert handNeutral
Insert holding methodClamp; Pin; Lever Lock
Insert length in3/8
Insert materialCarbide
Insert shapeSquare
Insert size code322
Insert styleSNMG
Insert thickness in1/8
Iso codeSNMG090308-MF2
Lead angle90degree
Length range0.3000 - 0.4000
Manufacturers catalog number02960750
Manufacturer gradeTP2501
Material gradeP10; P20; P30; P35
Maximum depth of cut0.3425
Multi use applicationBoring; Facing; Turning
Multi use toolYes
Number of cutting edges8
Primary workpiece materialSteel
RakeNegative
Relief angle0
Secondary workpiece materialStainless Steel; Cast Iron
Single or multi tippedMulti Tipped
StandardsANSI; ISO
Tolerance codeM
Width in3/8in
Wiper edgeNo
