Seco

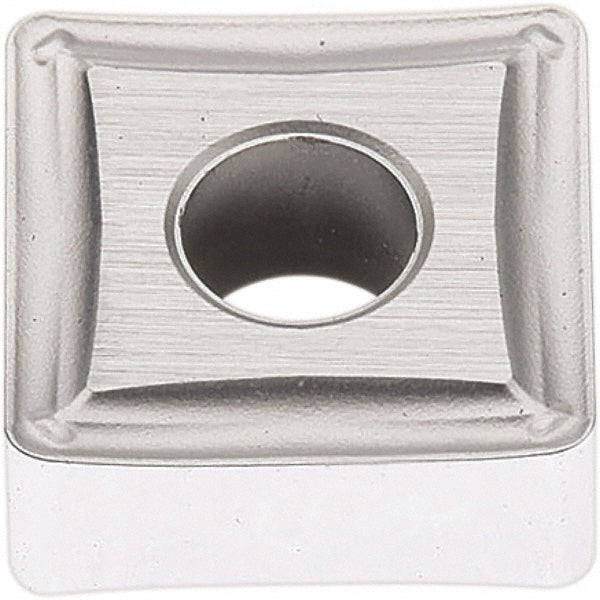

SNMG090304-MF2 Carbide Insert, Grade TP2501, TiCN - Seco 02960761
MFR# 02960761ISO/ANSI# SNMG321-MF2Series SNMG-MF2
$12.54List $16.09
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC3/8
ShapeSquare
GradeTP2501
MaterialCarbide
CoatingTiCN
Description
The Seco 02960761 is a SNMG090304-MF2 carbide indexable insert, grade TP2501, TiCN coated. Suited for steel.
Specifications
Chip breakerMF2
Clearance codeN
Coating finishTiCN
Coating processCVD
Corner radius in1/64
Cutting edge styleChamfered & Honed
Full radiusNo
Hole diameter0.1500
Included angle90degree
Industry standard numberSNMG321-MF2
Inscribed circle in3/8
Insert handNeutral
Insert holding methodClamp; Pin; Lever Lock
Insert length in3/8
Insert materialCarbide
Insert shapeSquare
Insert size code321
Insert styleSNMG
Insert thickness in1/8
Iso codeSNMG090304-MF2
Lead angle90degree
Length range0.3000 - 0.4000
Manufacturers catalog number02960761
Manufacturer gradeTP2501
Material gradeP10; P20; P30; P35
Maximum depth of cut0.3583
Multi use applicationBoring; Facing; Turning
Multi use toolYes
Number of cutting edges8
Primary workpiece materialSteel
RakeNegative
Relief angle0
Secondary workpiece materialStainless Steel; Cast Iron
Single or multi tippedMulti Tipped
StandardsANSI; ISO
Tolerance codeM
Width in3/8in
Wiper edgeNo
