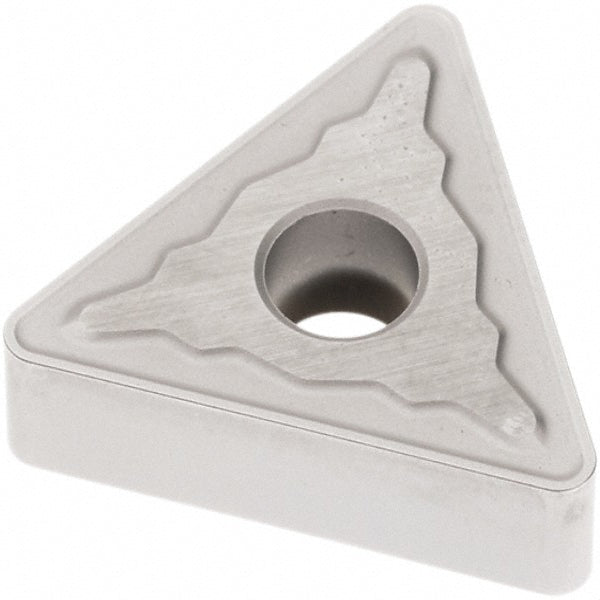

TNMG330924-MR7 Carbide Insert, Grade TP2501, TiCN - Seco 02960779

Seco

TNMG330924-MR7 Carbide Insert, Grade TP2501, TiCN - Seco 02960779

MFR# 02960779ISO/ANSI# TNMG666-MR7Series TNMG-MR7

$85.89List $110.16 Save 22%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
IC3/4
ShapeTriangle
GradeTP2501
MaterialCarbide
CoatingTiCN

Description

The Seco 02960779 is a TNMG330924-MR7 carbide indexable insert, grade TP2501, TiCN coated. Suited for steel.

Specifications

Chip breakerMR7
Clearance codeN
Coating finishTiCN
Coating processCVD
Corner radius in3/32
Cutting edge styleT-Land
Full radiusNo
Hole diameter0.3118
Included angle60degree
Industry standard numberTNMG666-MR7
Inscribed circle in3/4
Insert handNeutral
Insert holding methodClamp; Pin; Lever Lock
Insert length1.2992
Insert materialCarbide
Insert shapeTriangle
Insert size code666
Insert styleTNMG
Insert thickness in3/8
Iso codeTNMG330924-MR7
Lead angle60degree
Length range0.7000 - 10.0000
Manufacturers catalog number02960779
Manufacturer gradeTP2501
Material gradeP10; P20; P30; P35
Maximum depth of cut1.0669
Multi use applicationBack Turning; Boring; Facing; Turning
Multi use toolYes
Number of cutting edges6
Primary workpiece materialSteel
RakeNegative
Relief angle0
Secondary workpiece materialStainless Steel; Cast Iron
Single or multi tippedMulti Tipped
StandardsANSI; ISO
Tolerance codeM
Width1.2992in
Wiper edgeNo
