Seco

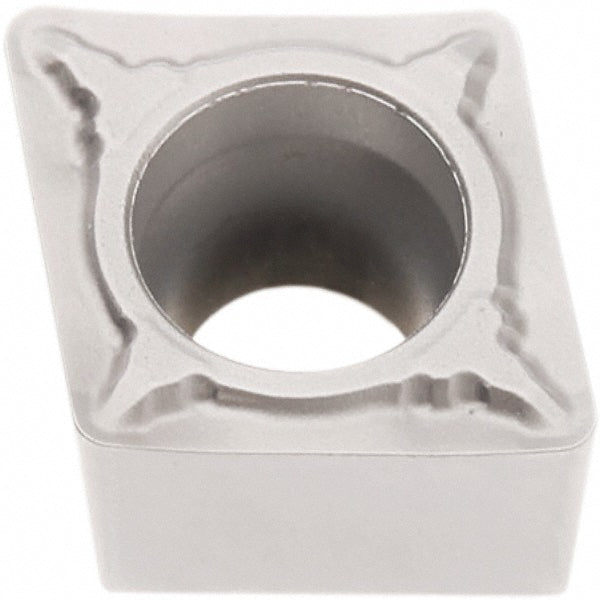

CCMT09T302-F1 Carbide Insert, Grade TP1501, TiCN - Seco 02960837
MFR# 02960837ISO/ANSI# CCMT32.50.5-F1Series CCMT-F1
$21.24List $26.77
Save 20%
Usually ships in 1-3 business days
Ship times are estimates. We confirm availability on every order and email you right away if anything changes.
⚡ Need it urgently? Confirm stock & ship time →
Sold in multiples of 10 — minimum order 10
Request a quote- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC3/8
ShapeDiamond 80
GradeTP1501
MaterialCarbide
CoatingTiCN
Description
The Seco 02960837 is a CCMT09T302-F1 carbide indexable insert, grade TP1501, TiCN coated. Suited for steel.
Specifications
Chip breakerF1
Clearance codeC
Coating finishTiCN
Coating processCVD
Corner radius in1/128
Cutting edge styleSharp
Full radiusNo
Hole diameter0.1772
Included angle80degree
Industry standard numberCCMT32.50.5-F1
Inscribed circle in3/8
Insert handNeutral
Insert holding methodScrew
Insert length0.3819
Insert materialCarbide
Insert shapeDiamond 80
Insert size code32.50.5
Insert styleCCMT
Insert thickness in5/32
Iso codeCCMT09T302-F1
Lead angle80degree
Length range0.3000 - 0.4000
Manufacturers catalog number02960837
Manufacturer gradeTP1501
Material gradeP10; P20
Maximum depth of cut0.3740
Multi use applicationBoring; Facing; Turning
Multi use toolYes
Number of cutting edges2
Primary workpiece materialSteel
RakePositive
Relief angle7
Secondary workpiece materialCast Iron; Hard Material
Single or multi tippedMulti Tipped
StandardsANSI; ISO
Tolerance codeM
Width in3/8in
Wiper edgeNo
