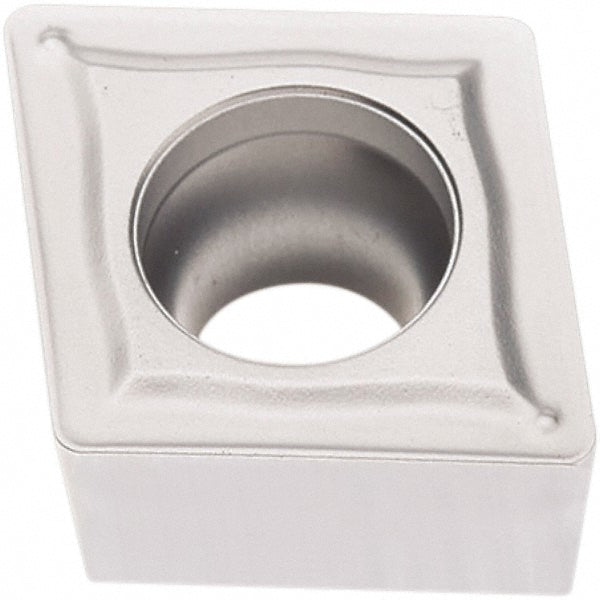

CCMT120404-M3 Carbide Insert, Grade TP1501, TiCN - Seco 02960840

Seco

CCMT120404-M3 Carbide Insert, Grade TP1501, TiCN - Seco 02960840

MFR# 02960840ISO/ANSI# CCMT120404Series CCMT-M3

$21.12List $27.09 Save 22%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
IC1/2
ShapeC - Diamond (Rhombic) 80-Deg
GradeTP1501
MaterialCarbide
CoatingTiCN

Description

The Seco 02960840 is a CCMT120404-M3 carbide indexable insert, grade TP1501, TiCN coated. Suited for steel.

Specifications

Ansi insert codeCCMT431
Ansi size code431
Chip breakerM3
Chip breaker operationFinishing; Medium Machining
Clearance codeC
Coating finishTiCN
Coating processCVD
Corner radius in1/64
Cutting edge styleChamfered; Honed
Full radiusNo
Grade characteristicsSteel (P) - High Wear-Resistance to Moderate Wear-Resistance and Toughness; Cast Iron (K) - High Wear-Resistance to Moderate Wear-Resistance and Toughness
Hole diameter0.2205
Included angle80
Industry standard numberCCMT431-M3
Inscribed circle in1/2
Insert handNeutral
Insert holding methodScrew
Insert length0.5079
Insert materialCarbide
Insert shapeC - Diamond (Rhombic) 80-Deg
Insert size code431
Insert styleCCMT
Insert thickness in3/16
Iso codeCCMT120404-M3
Iso insert codeCCMT120404
Iso size code120404
Lead angle80
Length range0.5000 - 0.6000
Manufacturers catalog number02960840
Manufacturer gradeTP1501
Material gradeP10; P20
Maximum depth of cut0.4921
Multi use applicationBoring; Facing; Turning
Multi use toolYes
Number of cutting edges2
Primary workpiece materialSteel
RakePositive
Relief angle7
Secondary workpiece materialCast Iron; Hard Material
Side clearancePositive
Single or multi tippedMulti Tipped
StandardsANSI; ISO
Tolerance codeM
Width in1/2
Wiper edgeNo
